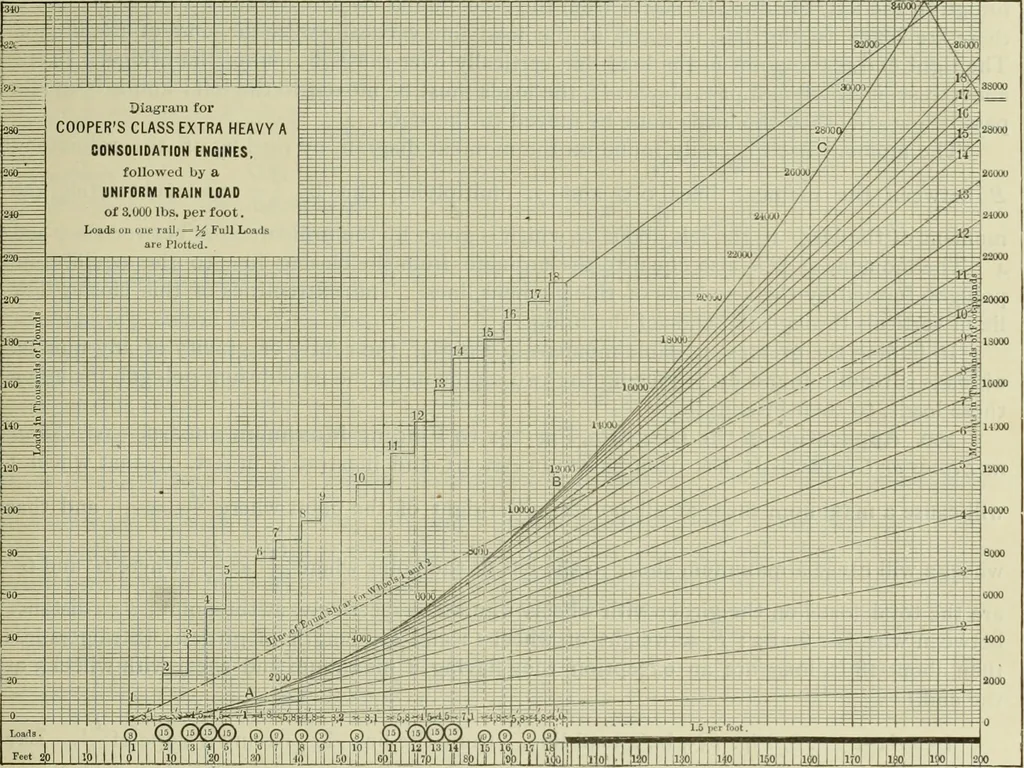

computing the moments of the portion of the uniform load between Band points to the right, about those points, and laying off these moments above the line 18. * This part of the diagram is due to Prof. Ward Baldwin, M. Am. Soc. C. E. See Eng. News, Sept. 28, Oct. 12,and Dec. 28, 1889. ANALYSIS FOR… … Feet aol I I llO Fir.. 131. A.ai.BADl( Not« Co.N«r. moments are desired, are first marked off on a slip of paper to the same scale as the diagram.Suppose 1-2-3-4 . . ., Fig. 132, represent a portion of a load line, and A, C, D, E, B be thepanel points of a truss, marked off on a separate slip of…
