The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 128

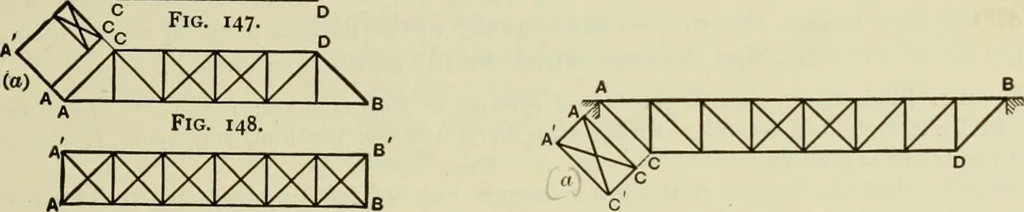

es in the end lateral systemare computed in the same way as are those in the lateral systems of bridge trusses, which willbe discussed in detail. The lateral systems of a bridge are either of the Howe, Pratt, or Warren type, cor-responding usually with the type of the main trusses. Fig. 147 shows… … Fig. 149. Fig. 150. usually form the transverse members of the lower lateral system in a through bridge, and ofthe upper lateral system in a deck bridge. The loads upon the upper laterals of Fig. 148, orupon the lower laterals of a deck bridge supported as in Fig. 150, are carried by them to…
