The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)

Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 209

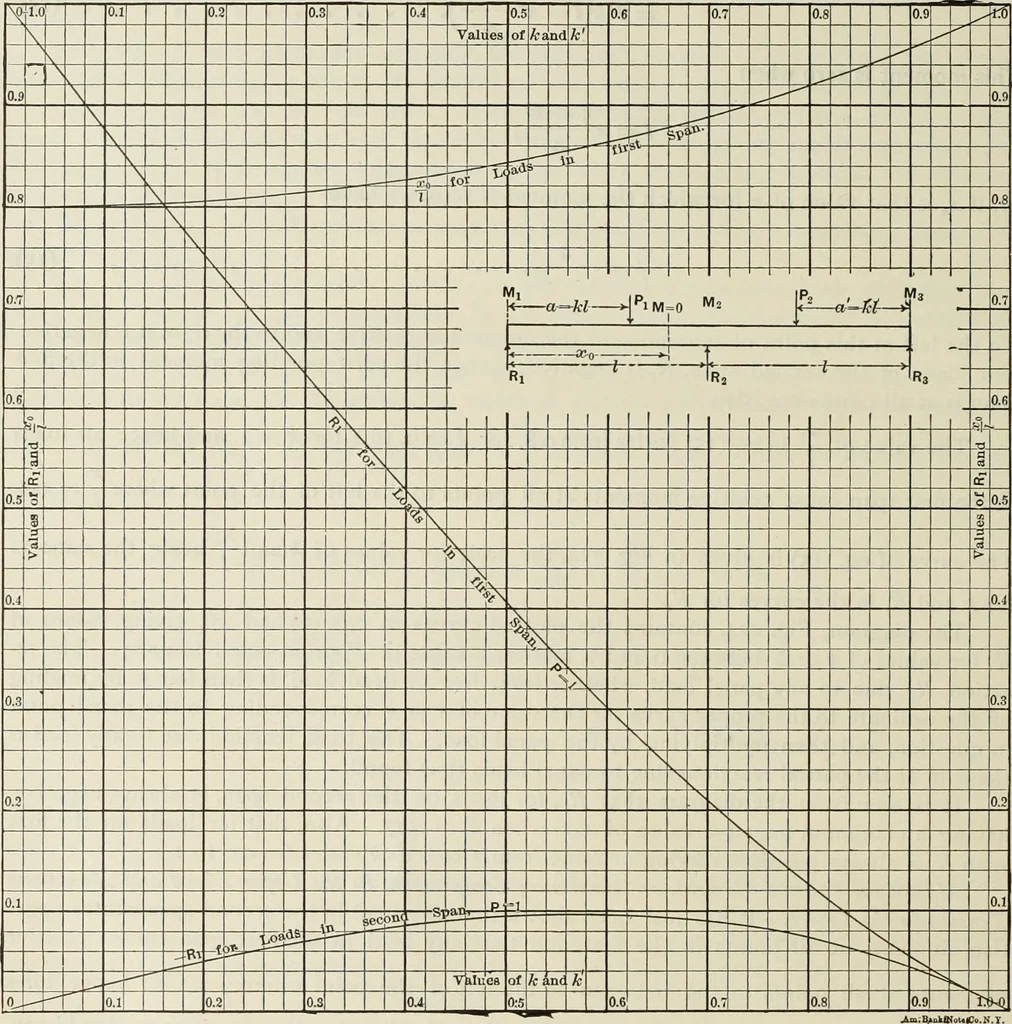

An illustration from The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice, 1897, leaf 209 — h the span, usually not more than one. The point over the centre support is not usedas a centre for positive moments, as the greatest positive moment there is zero. MODERN FRAMED STRUCTURES. It will, however, be shown that for all members to the right of the point where j = 0.8, we can for all… … Fig. 224. The position of the loads having been found in any case, the reaction is obtained aspreviously explained, and thence the stresses in the members. We next want to find the maximum web stresses from the end towards the centre. Maximum Posith>e Shear, or Maximum Tension in those Diagonals…
