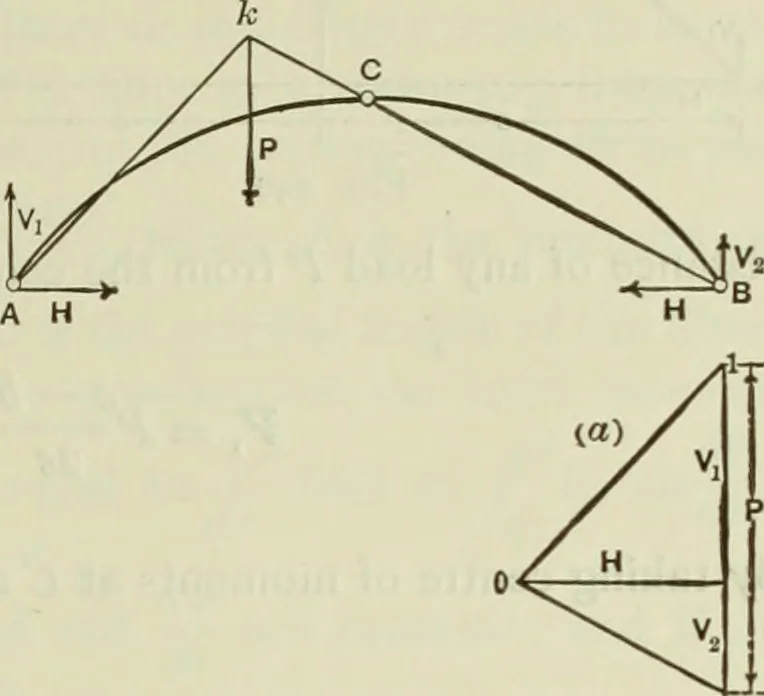

ection of BC and AG, will cause no stressjn DE, since the line AG \s the line of action of the abut-ment reaction at A, the only external force on the left ofthe section. For loads between k and B the reaction lineAk will lie below G, passing through C for loads on CB.The moment of the reaction at… … A (a) J / H % Fig. 244.
