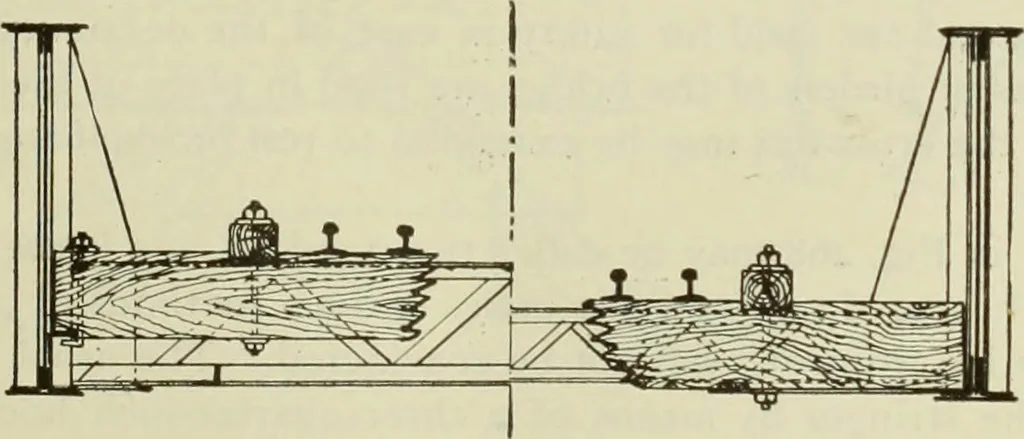

Fig. 267. transportation becomes difificult. The longer spans require deep girders for economy in iron,and the necessary web plates can only be obtained in short lengths, making frequent websolices necessary, thus adding weight and increasing cost. It is always preferable to have plate … Fig. 268. MODERN FRAMED STRUCTURES. girders riveted up completely in the shop by power, leaving the bracing between the girders asthe only parts requiring hand riveting after the girders are in place on the piers. Fig. 266 shows cross-sections at ends and in middle of span for a single-track deck…
