The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 330

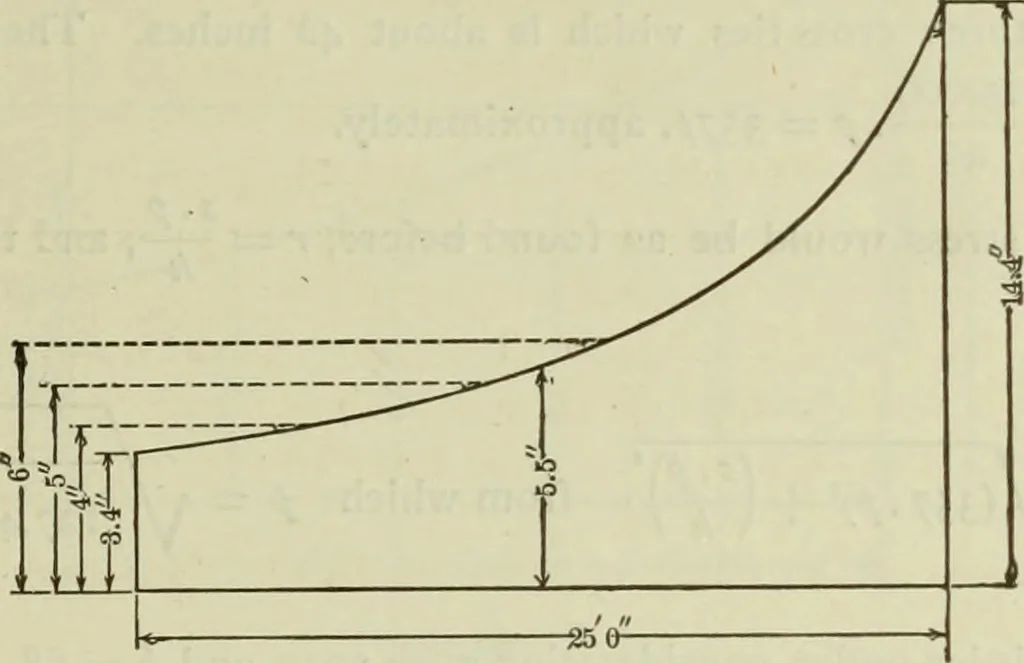

nt may be foundgraphically. For the girder we have under consideration the spacing required at the end is 3940 X 68 P = = 3-4 ins., ^ 78,700 the spacing required at the quarter point is THE PLATE GIRDER. 305 _ 3940 X 68^ ~ 48,600and the spacing required at the centre is 3940 X 68 P ^ = 5.5 ins., =… … Fig. 347. the maximum allowable space is 6 ins. for practical reasons. From the diagram it is easy todetermine the points where the spacing may be changed without exceeding the allowed stresson the rivets. 2d. T/ie Transfer of the Flange Stresses to the Flanges iising the Web Plate at its…
