The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 357

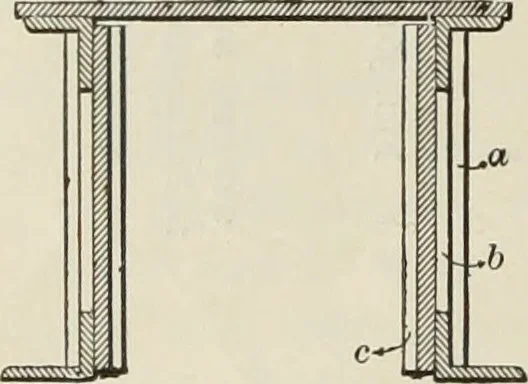

332 MODERN FRAMED STRUCTURES. … allowed bearing pressure per square inch of aB on the pin is if X 8300 = 12,450 lbs.The stress in the end post is 231,000 lbs., requiring 18^^^ square inches of bearing on the pin. The thickness of the bearing required — i8j\ — 3I inches. As the web plates bear on the pin, the amount of addi-tional…
