The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 37

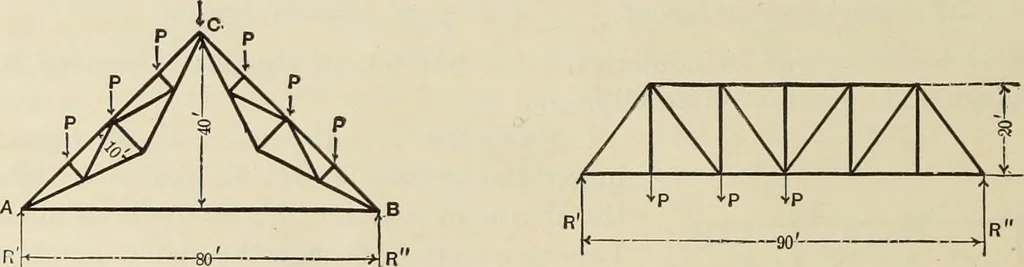

p … Fig. 33. Fig. 34. Example 3.Example 4.sections. Roof-truss (Fig. 33) P = 3000 lbs. Find R and R, and the stresses in all the members.Bridge-truss (Fig. 34) F = 5000 lbs. Find stresses in all the members by the method of Application of the laws of equilibmivm. 2i II. Graphiral Application.The…
