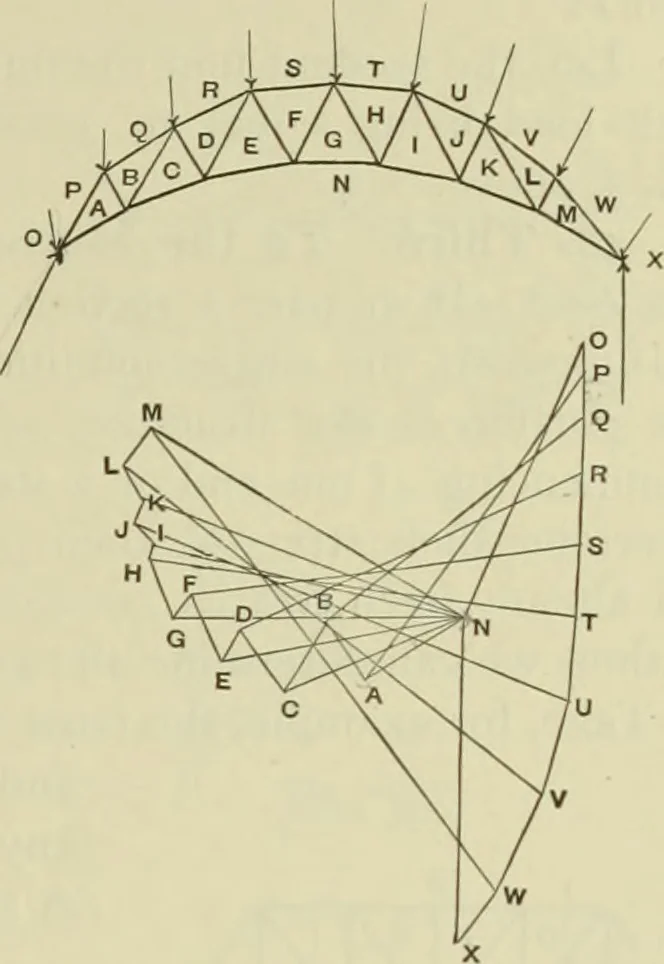

Fig. 49. APPLICATION OF THE LAWS OF EQUILIBRIUM. 29 … Fig. 50. An easier solution of the above example is now seen from the diagram. It depends uponthe fact that E, F, A and B are in the same straight line,and to find E and F we have only to produce AB to cutthe lines QE and RF. We may then draw FX parallel tothe piece FX, and CD likewise, thus…
