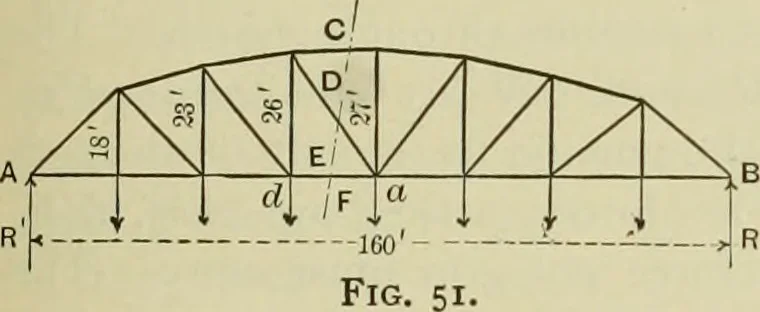

in^ Fig. 53. Beginning at F, FC is the abutment reaction R (R is best found analytically); FCGF, the force polygon for joint A ; FGEF, that for joint d,there being no stress in piece cd, as it exists in our new structure ; EGCDEis the polygon for joint c. We have then EF = S,, CD = 5,, and DE =…
