The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 519

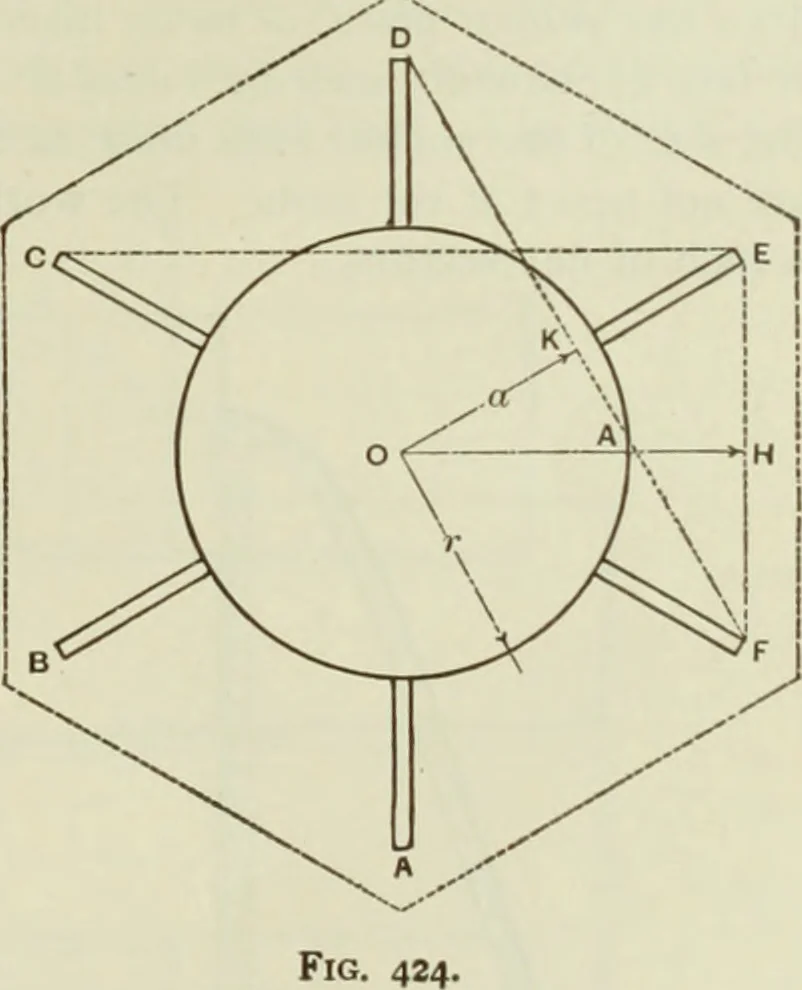

hd=4000 Thickness of Plates Fig. 423. … Taking moments about the line EF, Let Af — overturning moment; M„ — moment of resistance of dead weight = IV X dist. OH -P — pull on anchorage rods at B and C; then we have M= WA-\- 4PA +PA or P=z M - WA (4) If the wind had been in the direction BE, then the anchor rods at B would have acted MODERN…
