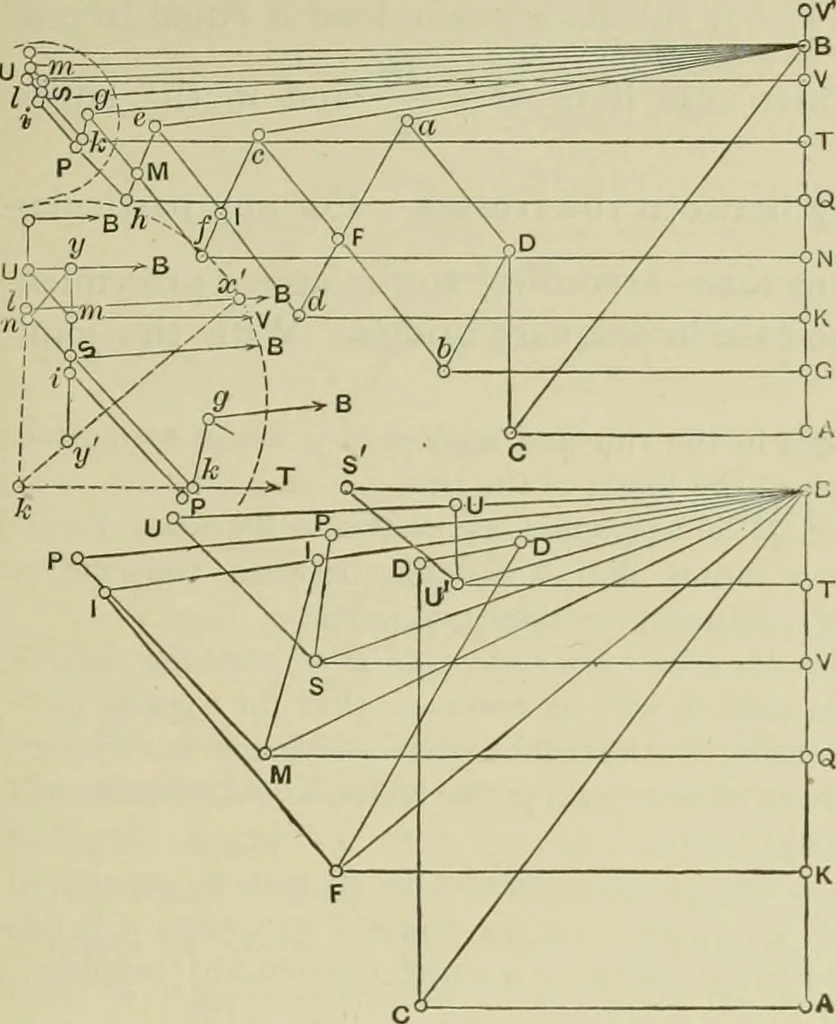

gram for 15 was drawn; then for joints 13, 12, 11, 10, 9, etc. The diagram was also drawn for thecounters, 11-16 and 9-14, acting, as was donein the previous examples. This part of thediagram is shown to a larger scale in thelower left-hand corner of Fig. 117. Theresulting stresses, marked Z), are… … Fig. ii8«.
