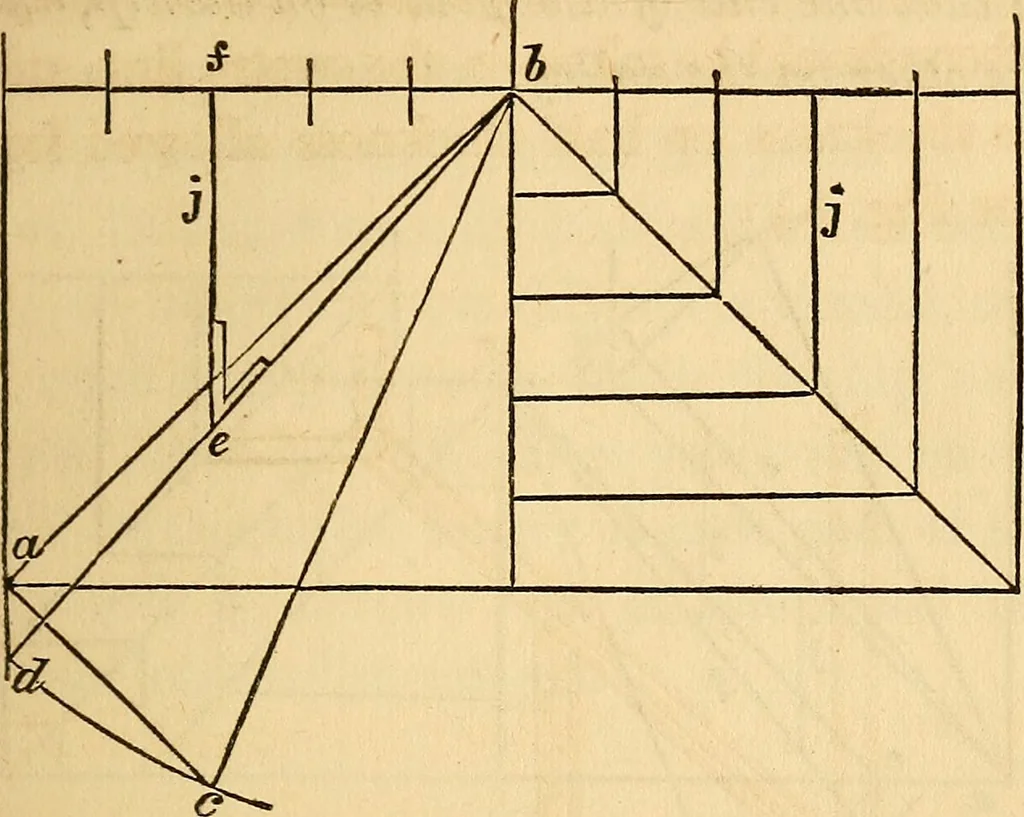

6. The valley-roof is the same as the hip-roof inverted. The principle of constructionis the same, with a little different applica-tion. HAND-BOOK. 13 … Fig. 4 Let a b (Fig. 4) represent the valley-rafter ;j j are corresponding jack-rafters. Set therise of the roof from a to c j connect b ande: from b to c is the length of the valley-rafter, and! the angle at c the bevel of thesame; set the length b c on the line from a;extend the jack^ to meet the…
