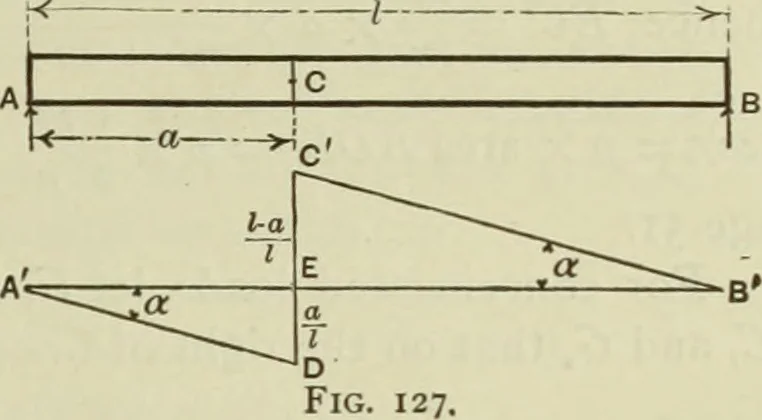

ment by T^^ and we shall BRIDGE-TRUSSES—ANALYSIS FOR WHEEL-LOADS. 77 have the maximum floor-beam concentration for panel lengths of and d^. If d^=- d^= d. the factor is -7. a 93. Influence Line and Position of Loads for Maximum Shear at any Point in aBeam.—The shear at C in the beam AB, Fig.… … movement of loads to the left, therefore, increases thepositive shear at C until some load P passes C, whenthe shear is suddenly decreased by an amount equal to ^ -j^ 7) — For concentrated loads, therefore, the shear reaches a maximum each time a load reaches C. The greatest of these maximum values…
