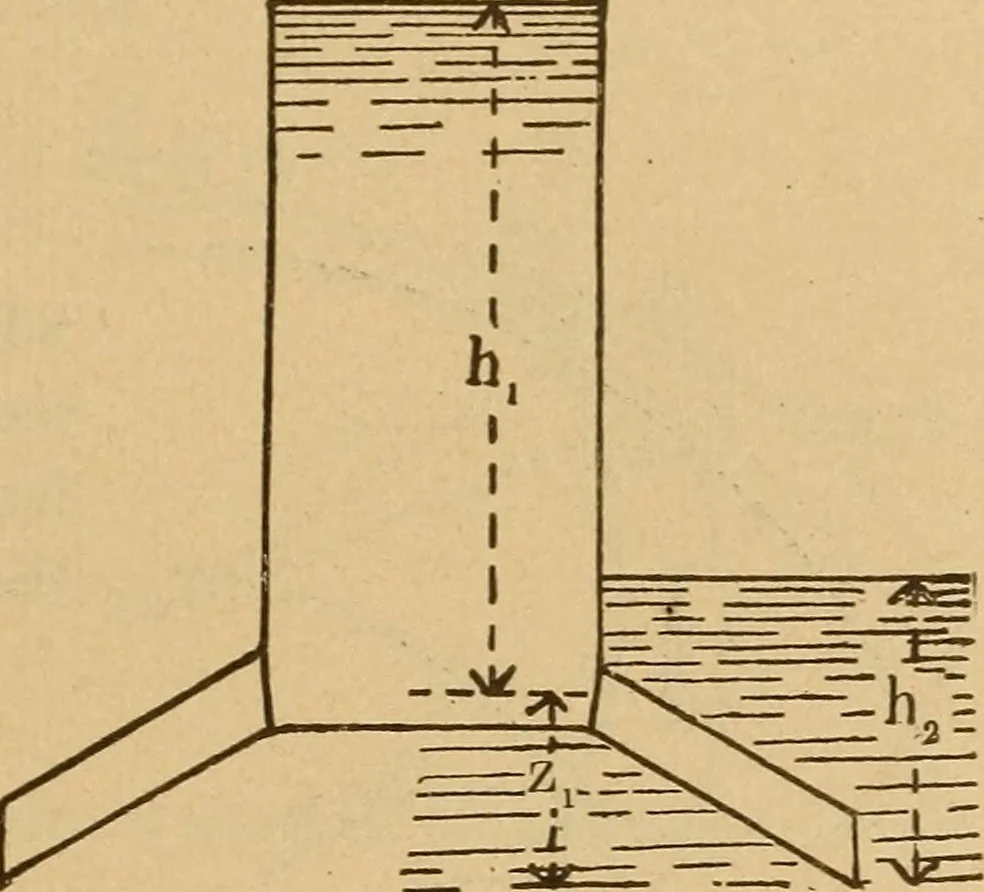

HYDRAULIC MOTORS. 6 «,, the arc subtending one bucket at entrance. (In Fig. 3,a and Oh appear to be the same but in practice they are usuallydifferent, a being greater than «,.) Oj = gh, the arc subtending one bucket at exit, K — bf\ normal section of passage, it being assumed thatthe passages and… … Fig. 2. ojTi = velocity of initialrim, cjr2 = velocity of terminalrim. 3. General Solution. Beginning with the pres-sure on the top of the supplychamber,the relation betweenthe heads, actual and virtual, will be determined to the pointof discharge from the wheel. The pressure per unit on the upper…
