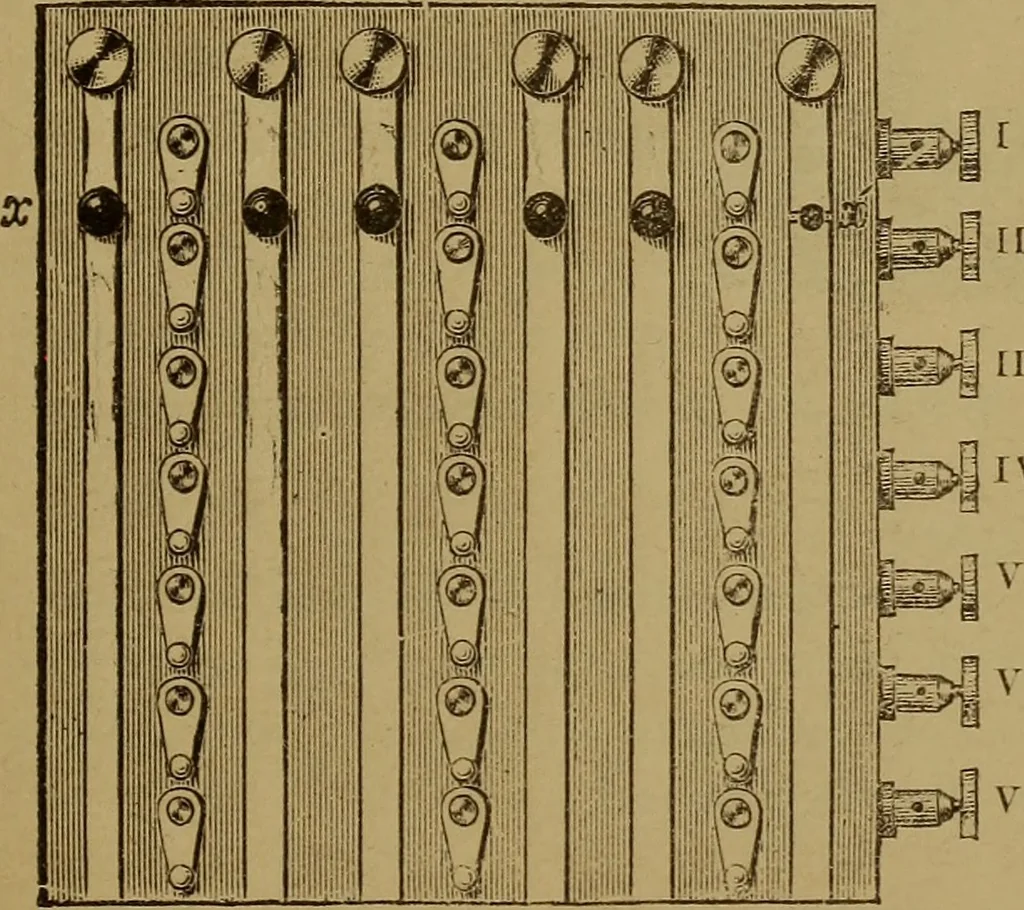

es hang between the strapsand have metallic connection with the binding screws, I, II,III, IV, V, VI, VII, at the side. The upright straps are allcut in two in the line x x* and joined again by pushing abrass peg between the ends. One is seen withdrawn at X. It may be seen by a slight inspection… … The Culgan Switch. E, C and F being opposite electrodes. At a way stationa switch with srxstraps and sevenhorizontal wireswould provide forthree through linesail three instru-in ments. VS. Wh.it would b3IV the method? Suppose th re ewires from the eastb~Kfl vt terminate in thebinding screws A,vn B,…
