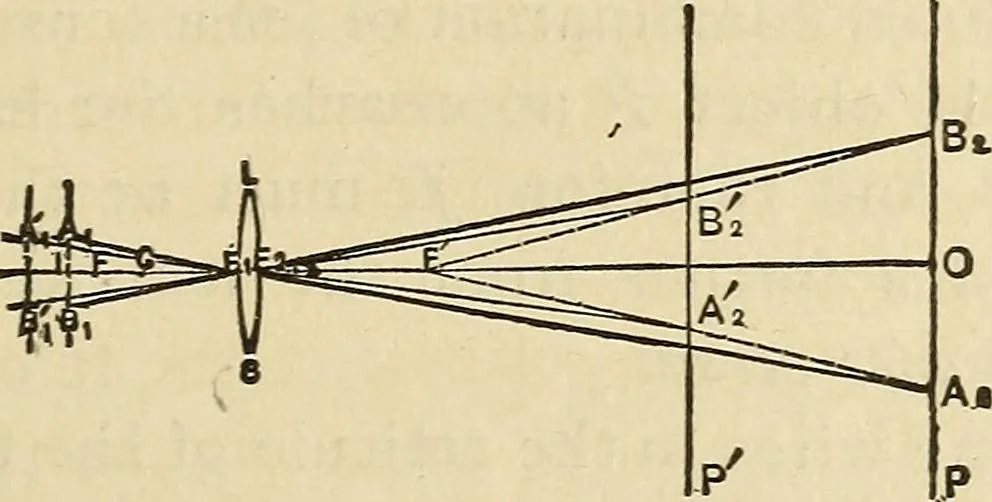

raphical purposes. THEORY OF STADIA MEASUREMENTS. 200. Fundamental Relations.—In Fig. 61 let LS be anylens, or combination of lenses, used for the object-glass of atelescope. TOPOGRAPHICAL SUP VE YING. 225 Let A^B^ be a portion of the object (in this case the stadia-rod), and let A^B^ be its image.… … Fig. 61. the instrument, or the intersection of the plumb-line, extended,with the axis of the telescope. Let E^ and E^ be the principal points, ^ and let thedistance FE^ = f (focal length), /■£, = A A^B^ = i (for image, intercepted portion),A^B^ = s (for stadia, intercepted portion).Then, since…
