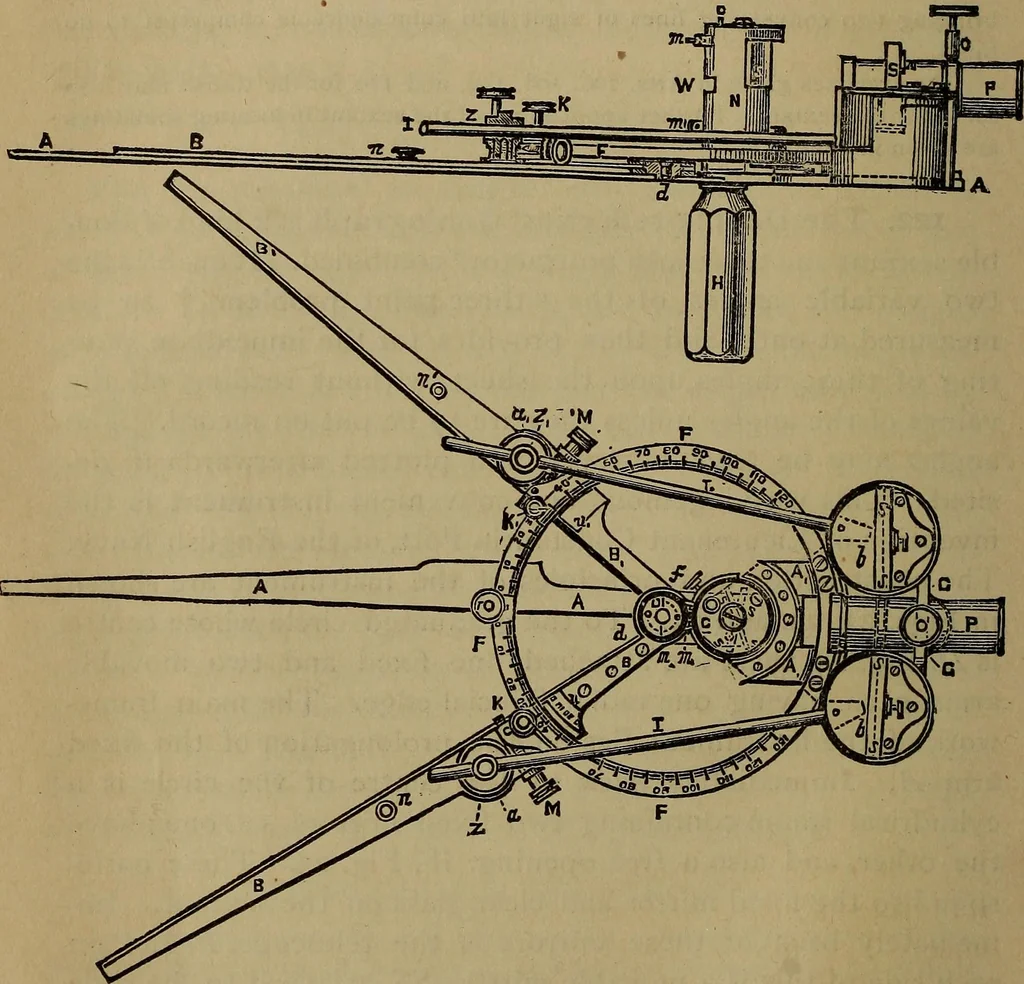

the slidebars //. These bars are fastened to the mirrors and slidefreely through the studs Z Z^ set upon the movable arms B Br * For a description of the three arm protractor see chapter VI.f See chapter X., for a discussion of this problem.8 114 SURVEYING. The distance of these studs from the… … Figs. 23 and 24. The theory of the instrument is shown in Fig. 25. The rayof light R is reflected from c to e and thence down the tele-scope to A. The object in the prolongation of AB casts the ADJUSTMENT, USE, AND CARE OF INSTRUMENTS. 115 ray Be directly down the telescope. The angle formed bythe…
