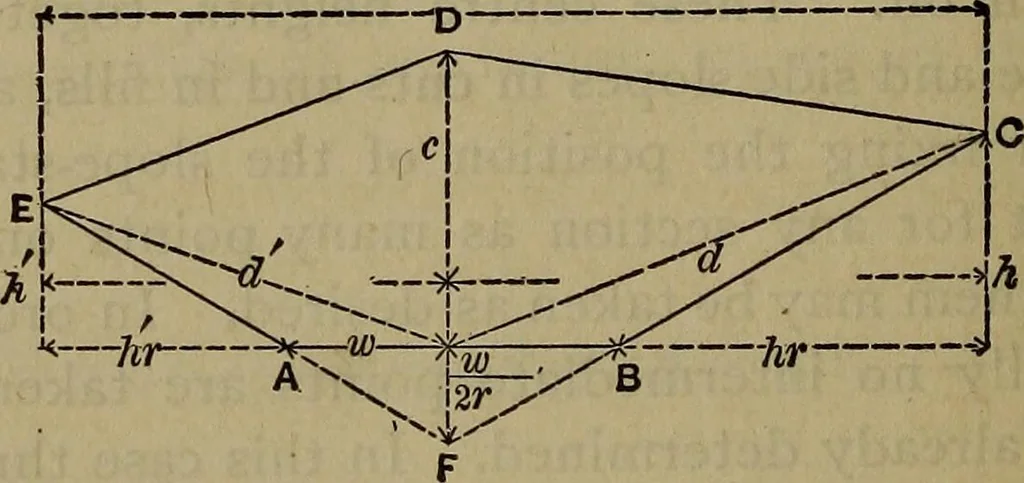

to the centrestake. 317. The Area of a Three-level Section.Let d and d be the distances out, and h and h the heights above grade of right and left slope-stakes, respectively;D the sum of d and d\c the centre height,r the slope-ratio,w the width of bed. 406 SURVEYING. Then the area ABCDE is equal to… … Fig. Equation (2) can also be obtained directly from equation (1) by substituting for h and h! in (1) their values in terms of . wa d and w, h = , and then putting D = d-\- dr. Equation (2) has but two variables, c and D, and is the most convenientone to use. 318. Cross-sectioning.—It will be seen…
