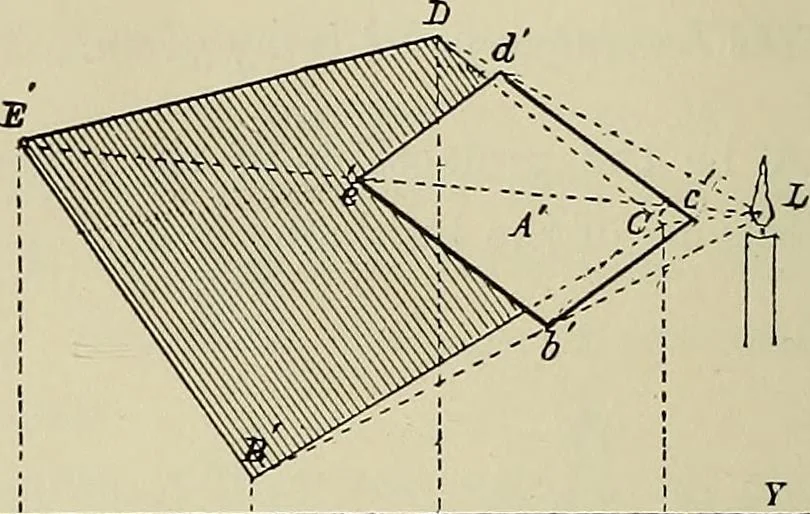

Draw lines from L through the points e\ h, c, d till theymeet XY in the points E, B, D, C. Draw Imes from L through the points c, d, c, d till they meetprojectors from the points E/ B/ D/ C in the points E, B, D, C.Join these points, as shown. 464 SOLID GEOMETRY Problem 213. To determine the…
