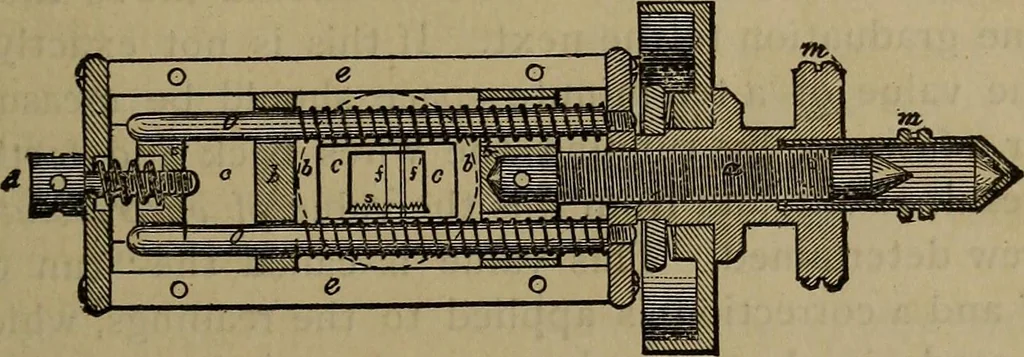

ad, or disk, attachedto it, there usually being sixty divisions in the circumferencewhen used in angular measurements. The number of wholerevolutions are recorded by noting how many teeth of a comb-scale are passed over, this scale being nearly in the plane of thewires and therefore in the focus of… … Fig. 136. Fig. 136 is a sectional view of a filar micrometer. The graduat-ed head h is attached to the milled head rn, forming a nut intowhich the micrometer-screw a works. This screw is rigidly at-tached to the frame b, to which are fastened the movable wiresf. The comb-scale s and fixed wire f…
