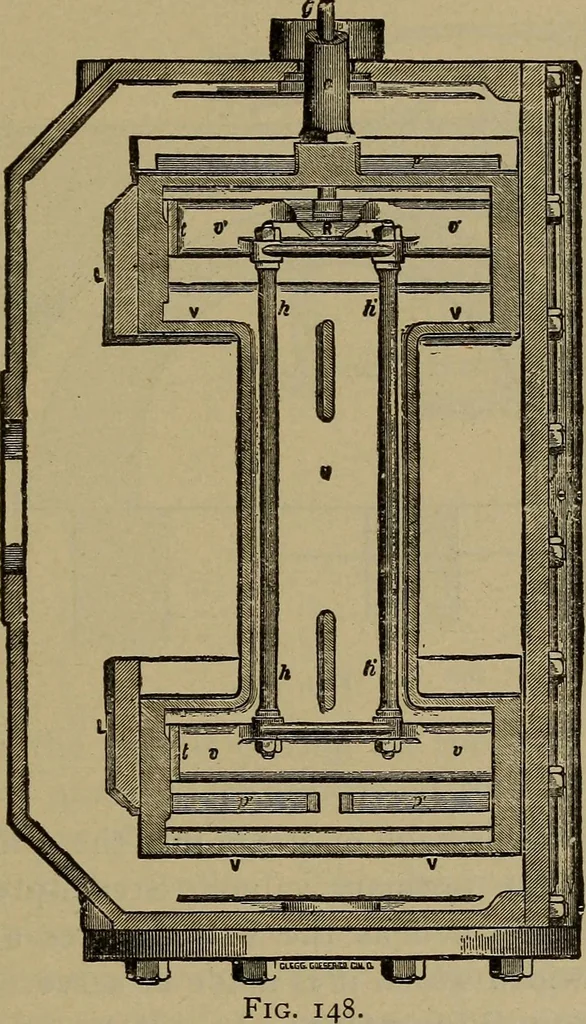

hts of the H are the work-ing-parts of the valve, and the cross-bar between is madehollow and fits the exhaust-port, whose length is at rightangles to the. length of the steam-ports (Fig. 148). VAL VE-GEARING. I9I 101. Shortening the Throw of the Valve. Allen Valve. —Another expedient for… … condition. If by keeping the throw of the eccentric largerthan the throw of the valve, there is yet opened an equalport-area with such reduced throw, there has been given tothe eccentric a mechanical advantage to overcome the pressurewhich holds the valve at its seat. Fig. 149 shows the…
