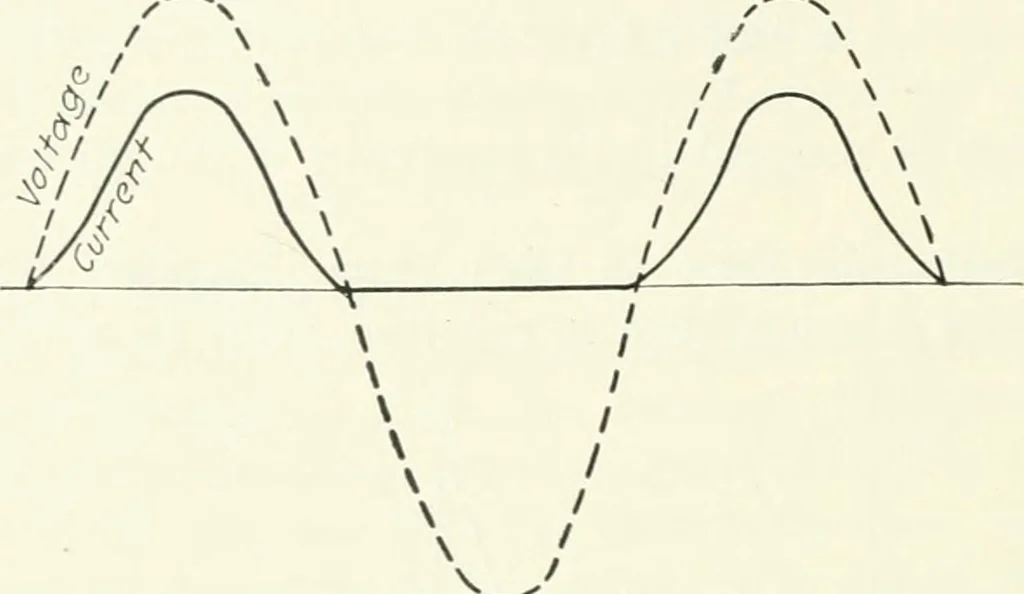

ely speaking, very-small. In order to explain the operation of the thermionic valve in arectifier circuit, let us consider its d-c. characteristic curve, shownin Fig. 42. When operated under the right conditions the device 116 THERMIONIC VACUUM TUBE conducts practically no current during the half… … FiG. 43, acteristic of the valve. As long as the peak value of the appliedsimple hannonic voltage is less than Es (Fig. 42) when the fila-ment temperature is T the current wave shape takes the formshown by the continuous curves in Fig. 43, the applied voltagebeing given bj^ the broken curve in…
