The thermionic vacuum tube and its applications (1920)
Van der Bijl, Hendrik Johannes, 1887- · New York McGraw-Hill Book, Co · leaf 194

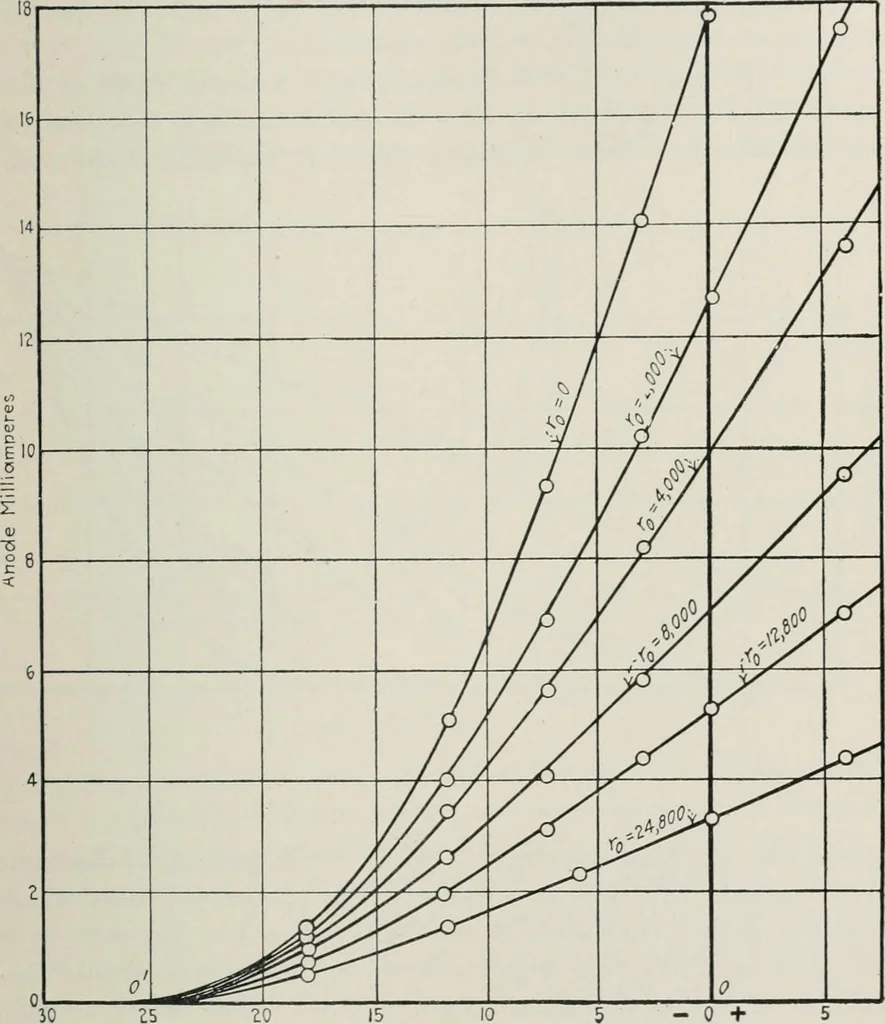

84 and 85 each characteristic is for a constantplate battery voltage Eu. In this case, as was explained in the ^ Other means for reducing distortion by using special circuit arrangementsare discussed in Section 78. THE THERMIONIC AMPLIFIER 171 previous paragraph, the filament-plate voltage Ep is… … 15 10 Grid Volt-s Fig. 84. as well as resistance, the static characteristics take the same shapeas when the reactance is zero, being determined only by theresistance component of the external impedance. Now, the thermionic tube is used mostly in a-c. circuits. It 172 THERMIONIC VACUUM TUBE is…
Telegraph, Wireless
