The thermionic vacuum tube and its applications (1920)
Van der Bijl, Hendrik Johannes, 1887- · New York McGraw-Hill Book, Co · leaf 320

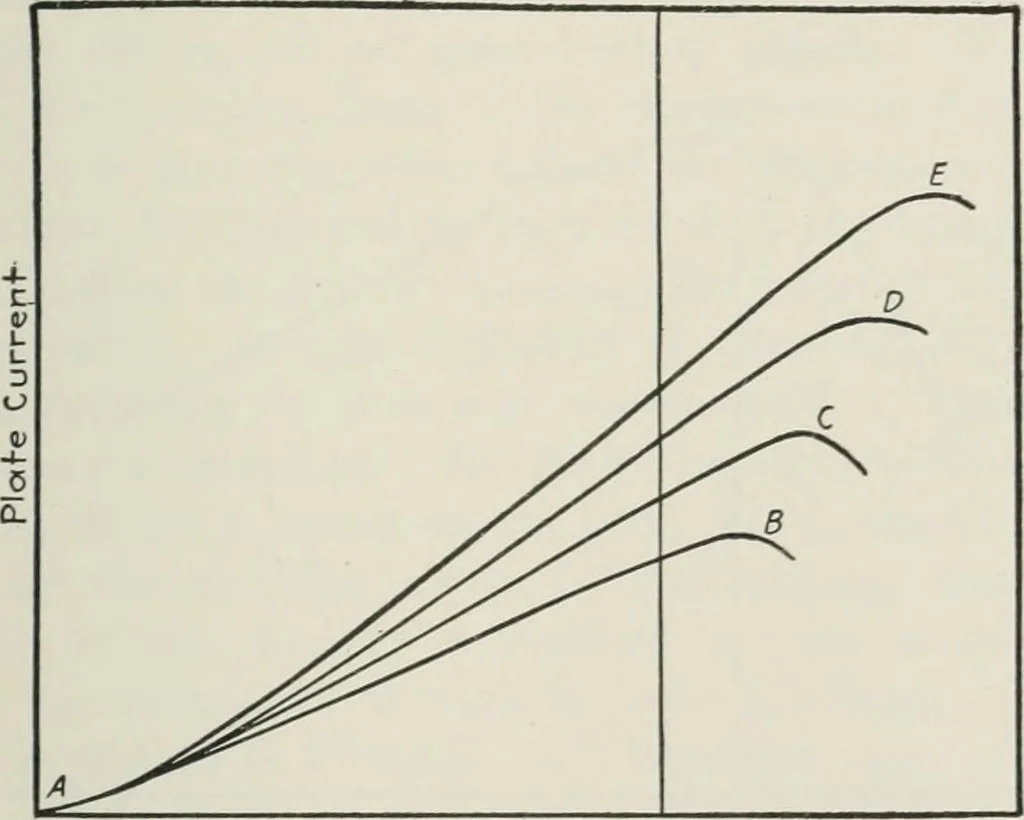

KL2)-oPCh (28) The resistance or real component of this hnpedance at the L2resonance frequency is given by ro=7r. The characteristics … Gnol Po+entioil Fig. 172. OB, OC, etc., correspond to different values of this resistance.The maximum power output in each case is obtained when thegrid potential rises up to the value indicated at the bend. If,now, the output for each of these resistances ro be plotted as afunction of this…
Telegraph, Wireless
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
