Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 263

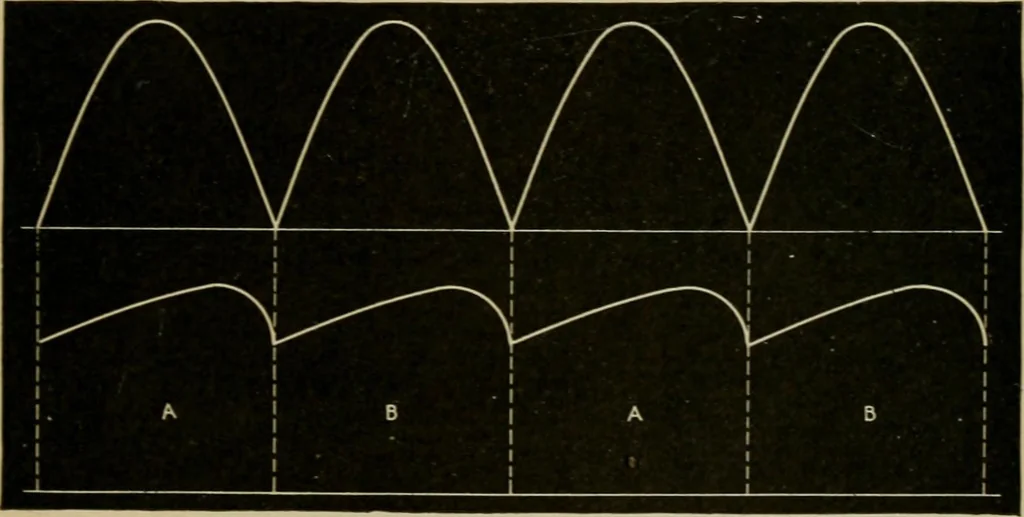

ge circuit of the reactance RECTIFIERS 1,521 coil E is now through the arc AB instead of through its formercircuit. Consequently the arc AB is now supplied with current,partly from the transformer, and partly from the reactance coil E.The new circuit from the transformer is indicated by the… … Figs. 2,112 and 2,113.—Diagram of current waves showing effect of reactance coil. If thealternating current wave could be rectified without the use of the reactance coil, thedirect current produced would consist of a series of impulses which would rise and fallfrom the zero line as illustrated in…
