Thermodynamics of the steam-engine and other heat-engines (1889)
Peabody, Cecil Hobart, 1855-1934 · New York, Wiley & Sons · leaf 381

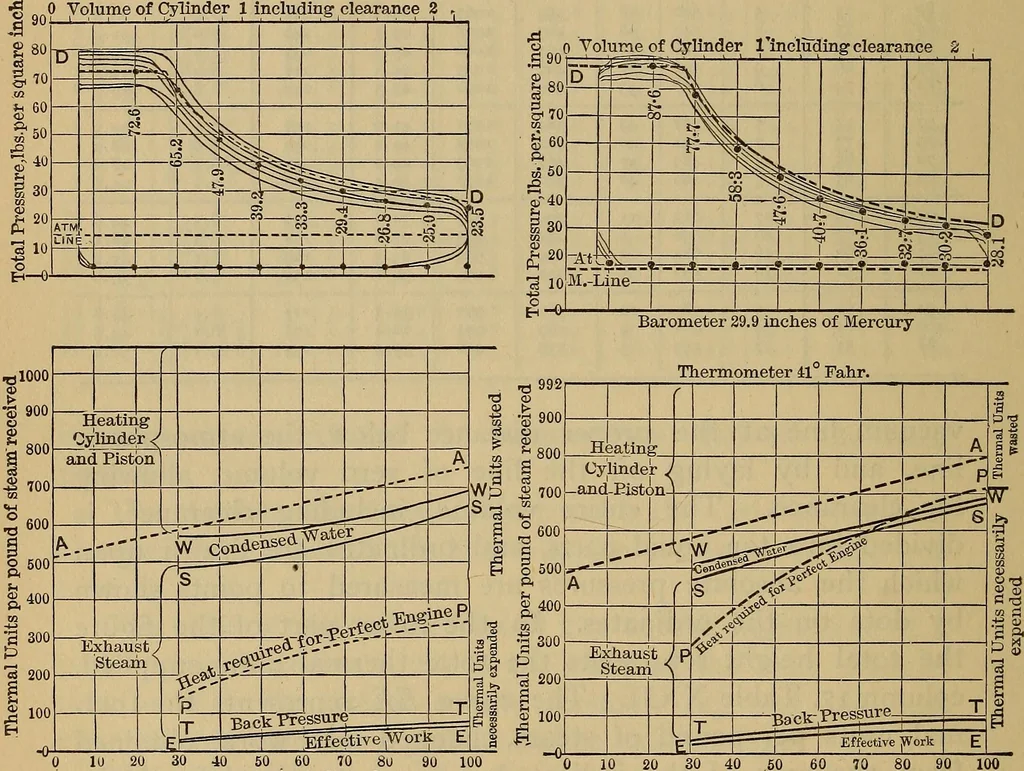

ed to do the 356 THERMODYNAMICS OF THE STEAM-ENGINE. absolute work up to that point of the stroke of the engine.To obtain the hne 55, the fraction x, of a pound of the mixturein the cyHnder which was 5team, was calculated for each ordi-nate, from the volume and pressure, and the heat in that… … lu 20 30 40 50 60 70 8o 90 100Percentage of stroke including clearance Fig. 64. lu 20 30 40 ,50 60 70 ou au Percentage of stroke including clearance Fig. 65. nate, and q^ is the heat of the liquid corresponding to the backpressure. The number of thermal units was then plotted on eachordinate from…
Thermodynamics · Steam-engines · Heat-engines
