Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 747

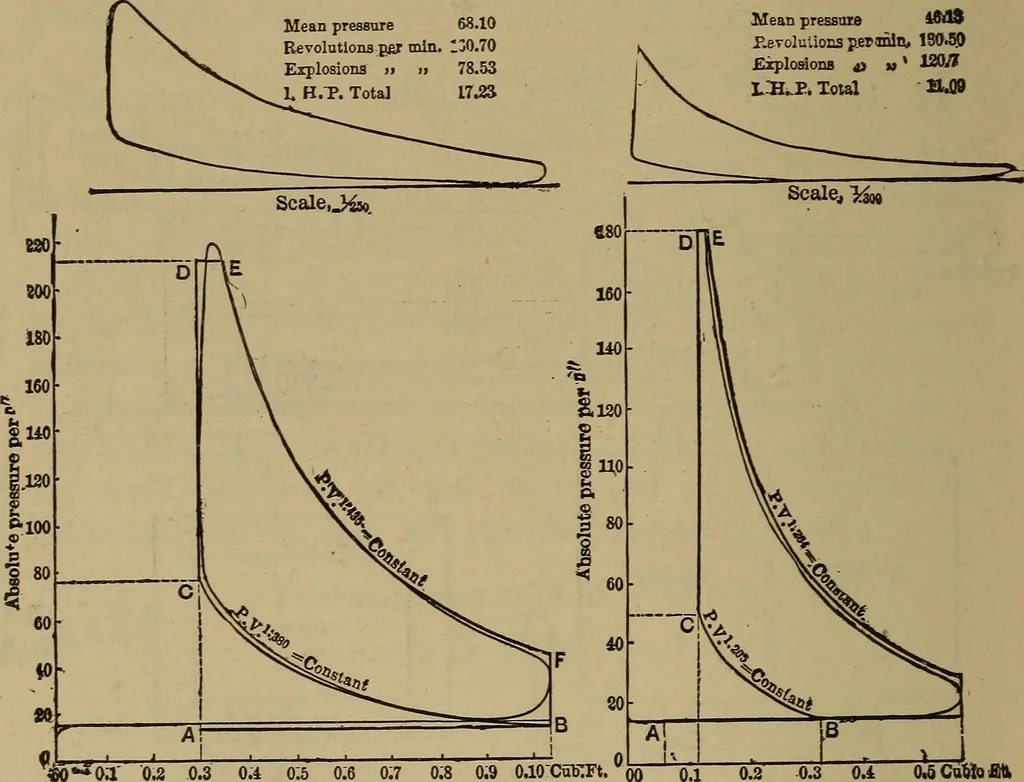

ection with the test of a gas-engine, plot a curve with cubic feet of gas per I. H. P. at 320 F.and atmospheric pressure as ordinates, and I. H. P. as abscissae. In the test of gasoline- or oil-engines, plot a similar curve,using the weight of fuel instead of the volume of gas. Also plot a curve… … 4o**oa 0.2 0.3 baois 0:6 o;7 OTTO ENGINE. ATKINSON ENGINE. Fig. 321.—Actual and Ideal Indicator-diagrams from Gas-engines. In case the air cannot be directly measured it may be approxi-mately computed in the case of the oil-engine by obtaining theratio of the weight of oil to the weight of air…
