Thermodynamics of the steam-engine and other heat-engines (1898)
Peabody, Cecil Hobart, 1855-1934 · New York, Wiley · leaf 478

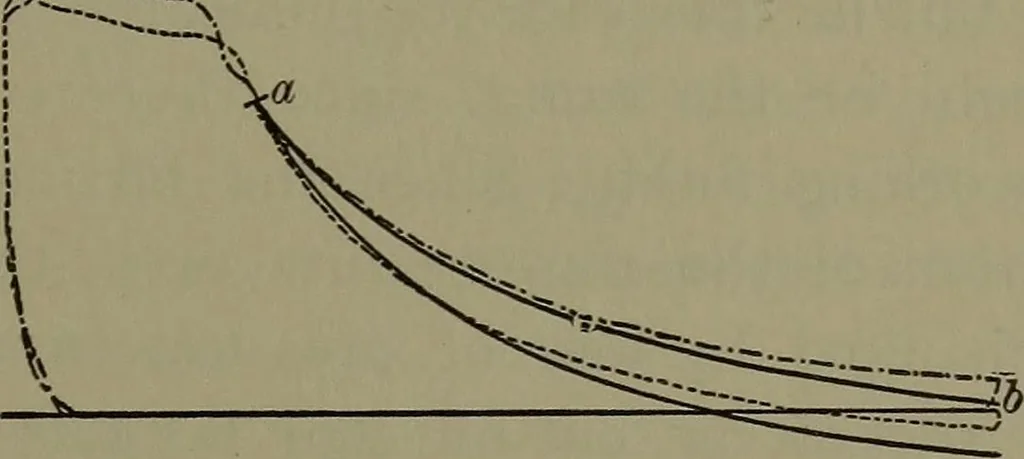

g von Paris durch Druck-luft, 1891. f Development and Distribution of Power. COMPRESSED AIR. 467 with 700 F. for the temperature of the atmosphere and withQ = 0.0044. Consequently the loss of pressure is about eightpounds. Compressed-air Engines. — Engines for using com-pressed air differ from… … Fig. 90. taken from the cylinder of an engine using compressed air,and the dot-and-dash diagram was taken from the same endof the cylinder when steam was used in it. The full line abis a hyperbola and the line ac is the adiabatic line for a gas;both lines are drawn through the intersection of the…
