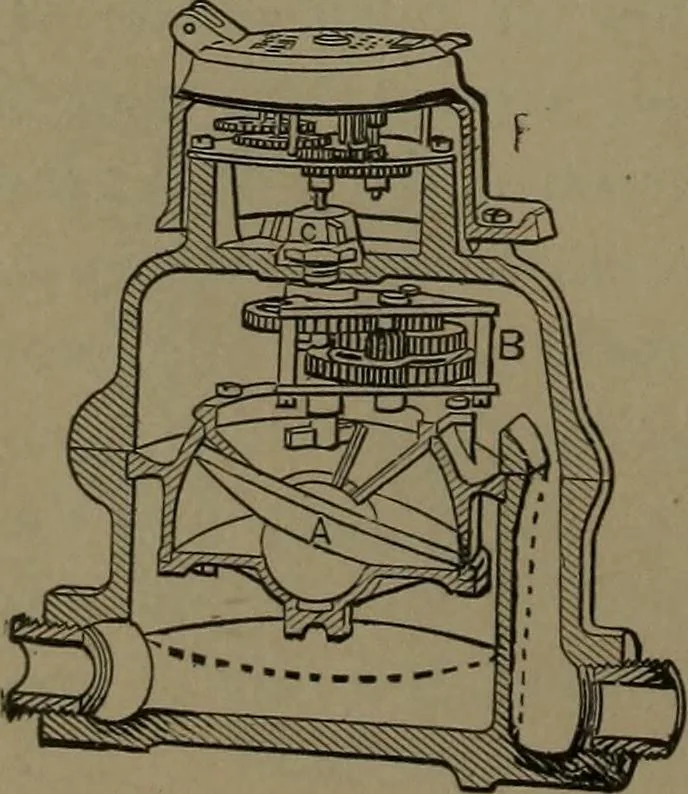

An illustration from Mechanical movements, powers and devices, 1907, leaf 161 — 556. WATER METER.— Union water me-ter model. The water passes through a rotarymotor with equalizing gear, from which the dialpointers are driven by a clock train and counter. … 557. DISC WATER METER, * Hersey•model. The disc piston, A, oscillates by thepassage of water through the disc chamber.The spindle of the disc, by its oscillatingmovement, rotates the crank and gears of theindex-wheel train. HYDRAULIC POWER AND DEVICES. 151
