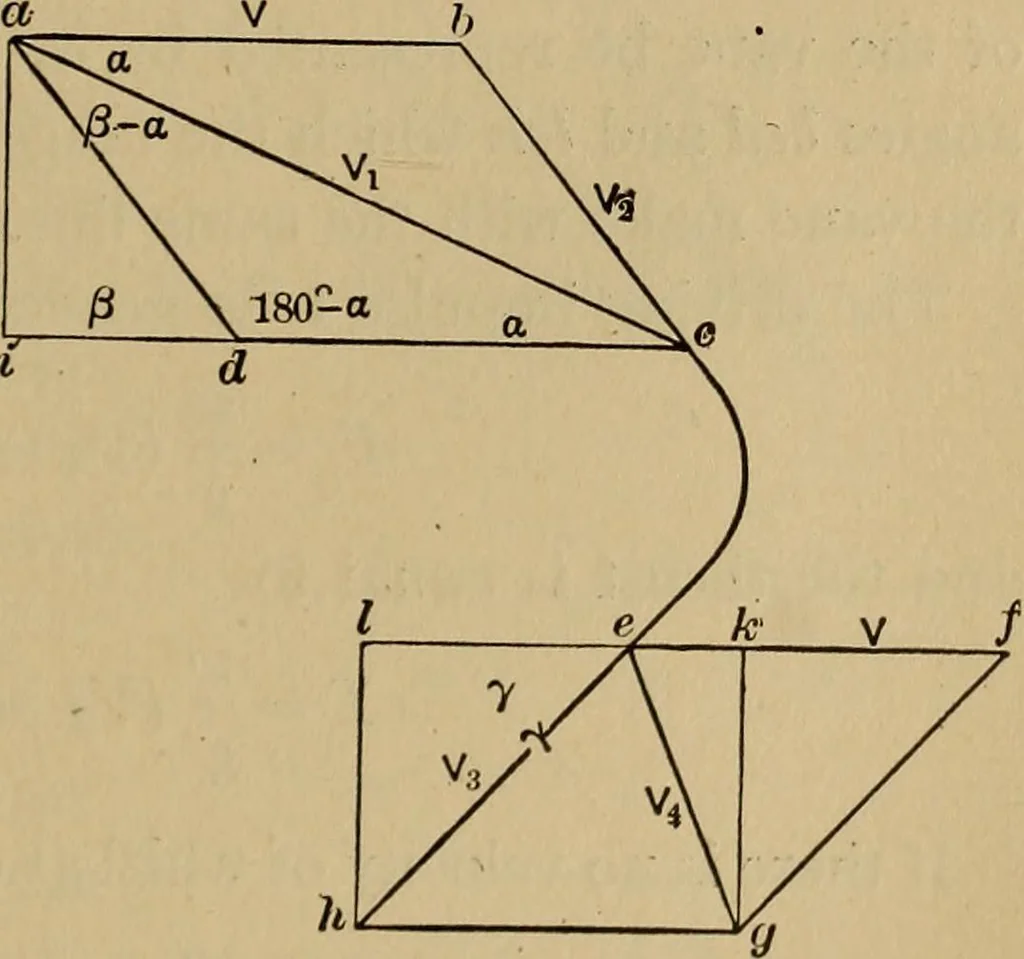

the vane, and in generalthis arrangement is desir-able because it avoidssplattering. If it be supposed thatthe vane is bounded atthe sides so that the steamcannot spread laterally and if friction can be neglected, the relative velocity V^ may beassumed to equal F2. Its direction is along the… … Fig. ioi. 478 STEAM-TURBINES two components ai and ic, along and at right angles to the direc-tion of motion of the vane. The former may be called thexelocity of flow, Vf, and the latter the velocity of whirl, Vy,.In like manner the absolute exit velocity may be resolved intothe components ek and…
