Training in wood-work, designed for use in manual training and technical school; consisting of three parts: carpentry, wood-turning and pattern work (1902)
Tate, James M. (James Murray), b. 1852 · Minneapolis, Minn., School Education Co · leaf 43

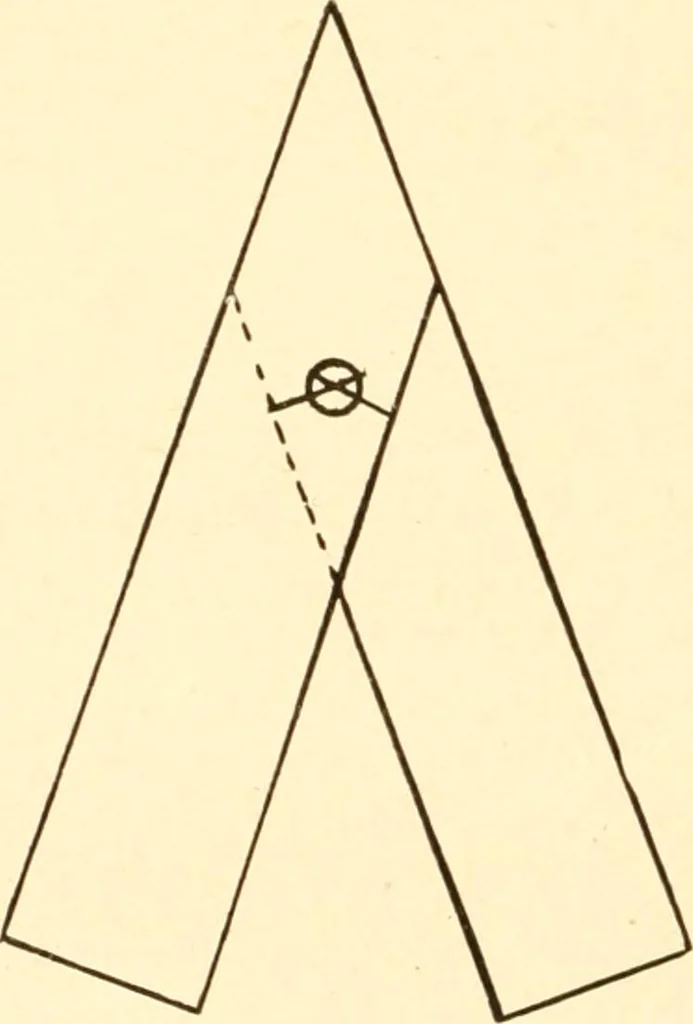

a straight line across. When this has been done, the piecewill appear as shown in Figs. 60 and 61. The work is now Fig. 60. 40 MANUAL TRAINING to be cut into two parts at the center by the instructor andmarked according to workmanship. The pieces are then placedin position and bored and pinned… … Fig. 62. MANUAL TRAINING 41 EXERCISE NO. 6. Exercise No. 6 is a model of a timber splice, and is shownin Fig. 63. This joint is adapted for use where the stress isin two directions only. The work should be done in the fol-
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
