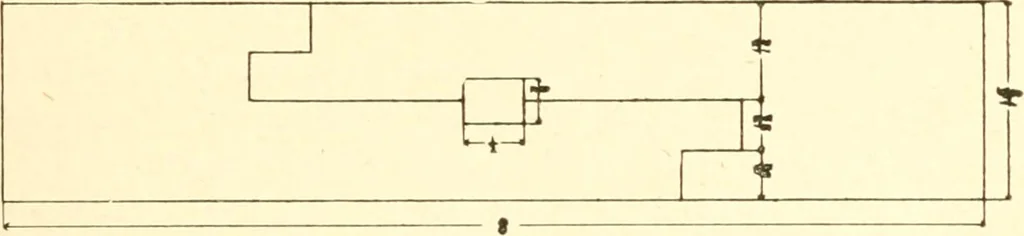

Fig. 62. MANUAL TRAINING 41 EXERCISE NO. 6. Exercise No. 6 is a model of a timber splice, and is shownin Fig. 63. This joint is adapted for use where the stress isin two directions only. The work should be done in the fol- … trt Fig. 63. lowing manner. First plane a piece to the dimensions given,following the rules as in Exercise No. i. With the try squareand knife draw a line across the end of the piece. With the trysquare on surface No. i or 2, square this line around thepiece. With end of the rule placed against the…
