Training in wood-work, designed for use in manual training and technical school; consisting of three parts: carpentry, wood-turning and pattern work (1902)
Tate, James M. (James Murray), b. 1852 · Minneapolis, Minn., School Education Co · leaf 62

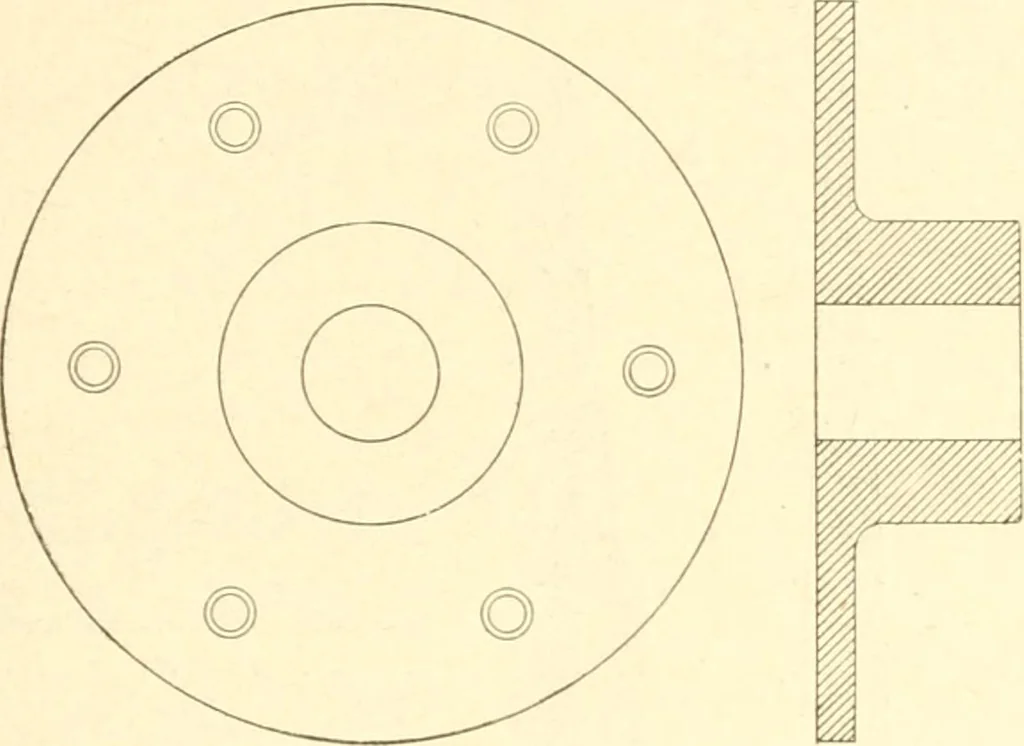

Fig. 98. Fig. 99. 98 and 99. A larger face-plate is shown in Fig. 100. Theswing of the wood-lathe is determined by measuring thedistance from the point of the driving-center of the spindle MANUAL TRAINING 59 to the shears or bed, and muhiplying by two. Thus, if thedistance from the center of… … Fig. 100. more, the lathe will accommodate work 12 inches in diameter.The lathe tools are next considered. The gouge, (See Fig. 102) possesses the widest range ofusefulness to the wood-turner and is first used to remove therough corners of the piece. The same tool may be advanta-geously used in…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
