An illustration from A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .., 1895, leaf 167

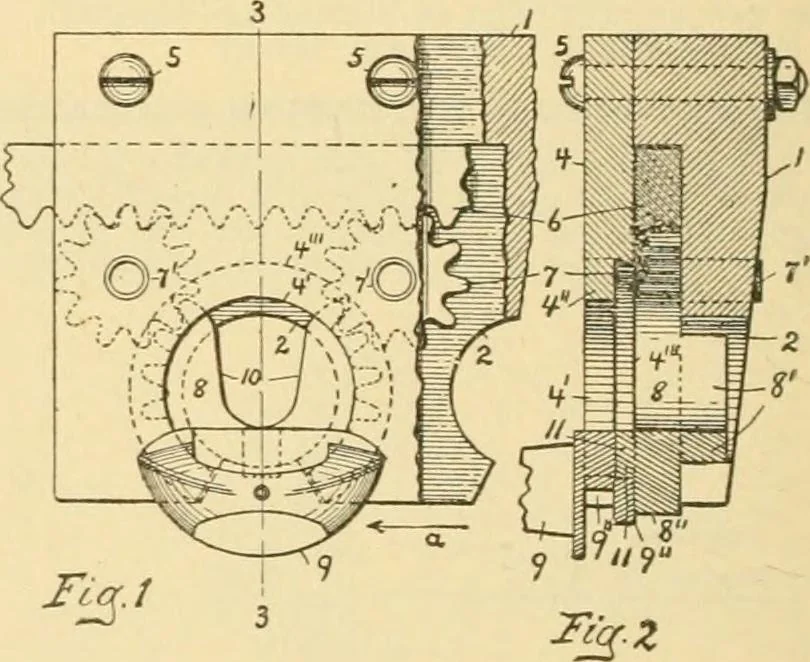

of the swivelshuttle motion, showing one of the shuttles at itslowest point of movement. Fig. 2 is a vertical crosssection on line 3—3, Fig. 1, looking in the directionof arrow a, same figure. 1 indicates the baclt box plate, having in its lowerportion a series of openings 2 of equal diameter andof… … (shown in dotted lines Fig. 1) for the entrance ofthe warp threads from below into the openings 2when the shuttle is in its upper position. The front portion of the back plate 1 is cut away,as shown in Fig. 2, to leave a space between theback plate 1 and the face plate 4 for the horizontalmoving…
