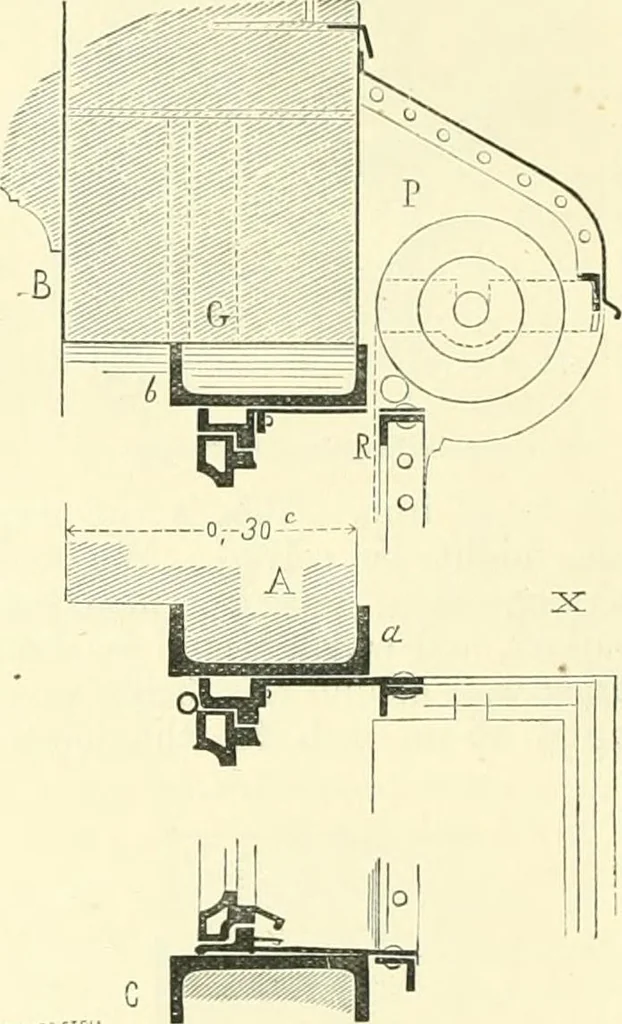

e asregards the window-frames, figure 12. The exterior is at x.At A is di-avvn the horizontal section of one of the two jambs ofthese windows ; a double L-iron forms one of the upiights of theiron wall-framing. The window-cases project on the outside andform a metal reveal, to which the casement… … a \ Fig. 12.-Details of tlic Wiiiiliiws. metal reveal itself. For this serves the purpose of angleplates, and should be fixed at the same time as the uprights,siU and lintel of the window frame. To the vertical plates ofthe window-reveal is fastened, by means of small angle-irons, theaMaiing p,…
