A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 168

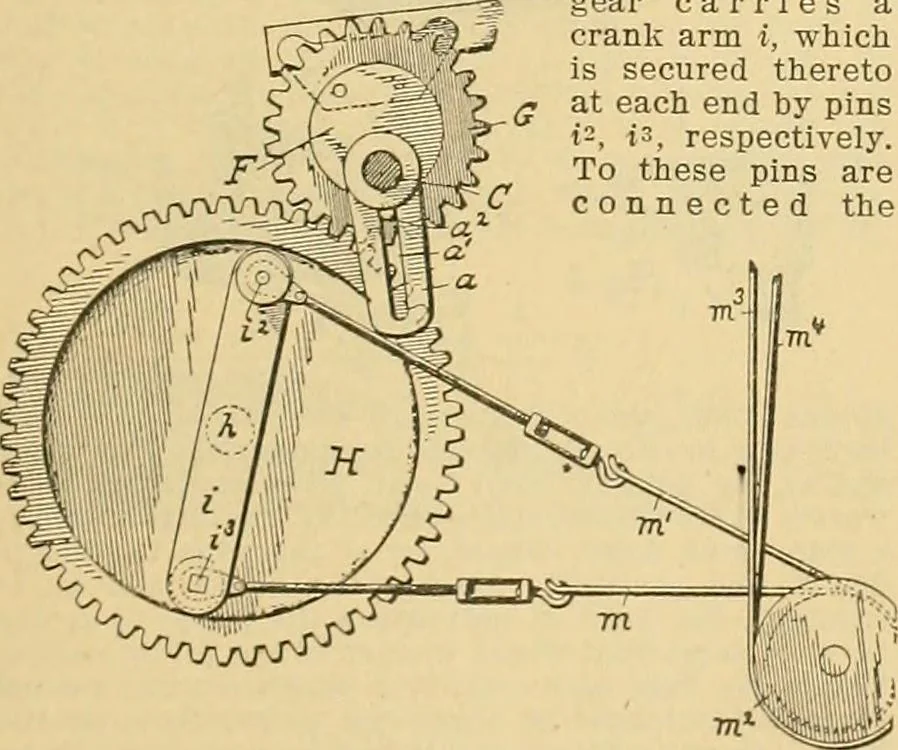

s a side elevation of this drivingmechanism, shown detached from the loom. The crank shaft C passes through an eccentric F,on which is loosely mounted the driving gear G. Onthis gear G is fixed a pin a= which enters the slot aiin arm a, secured to the crank shaft C. In mesh with the gear G is the… … straps m, mi, by which motion is imparted to theshuttles through disks m, and straps iii, m*, as con-nected to a second disk (not shown) for reciprocatingthe rack bar of the loom. Hoxc the Speed of tlte Shuttles is Varied: As thecrank shaft C revolves, the eccentric relation be- tween the shaft C…
