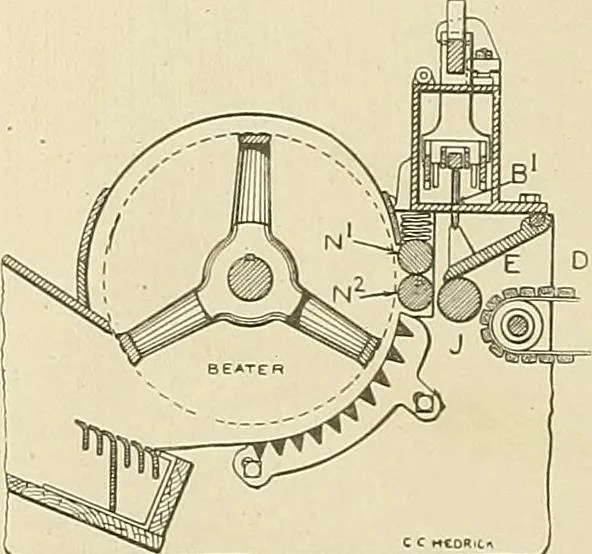

connection between the top saddle, E^, andthe top lever. F^. The top lever, which has its fiilciaim at G^,is connected at its long .end by a rod, H^-, the lower end of whichtermuiates in a rack, A^, which is in gear with a pinion, C*, thislast being on the qnadiaut shaft, J^. On the outer end of… … Fig. 37. Sectiou Showing Evener Rollsand Feed Rolls. COTTON SPINNING. 4.7 of a difference in thickness of the sheet of cotton passing undei-them, the quadrant shaft is turned sHghtly, and by the connectionsjust described, the cone belt is moved to a different position on theface of the cone,…
