A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 373

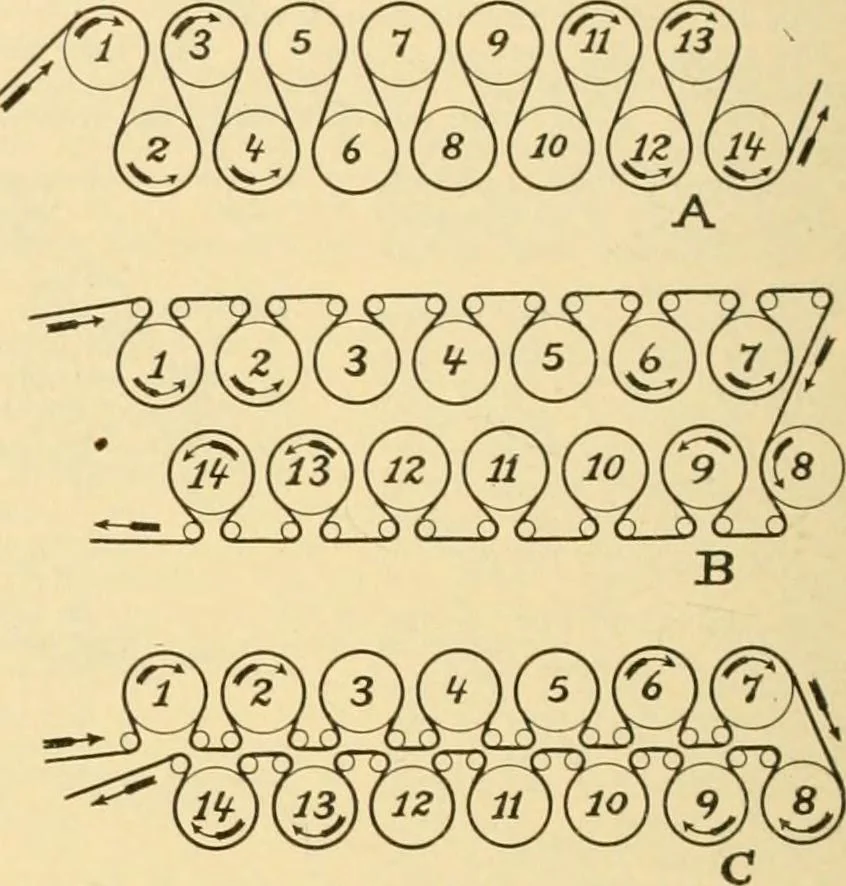

s, and in order to explain thissubject, diagram Fig. 17 has been prepared, showingarranged in one machine the principle for any modeof drying cloth by means of a cylinder drying ma-chine. In said figure Diagram A shows contact ofcylinders with both sides of the cloth, viz.: cylinders1, 3, 5, 7, 9,… … Fig. 17. connection with Diagram B, the cloth then will have,with the same mode of entrance, contact with thecylinders only on one of its sides. The same resultis obtained If placing said binding rolls betweenthe two series of drying cylinders—as shown inDiagram C; the difference between mode B and…
Textile fabrics · Textile industry · Textile machinery
