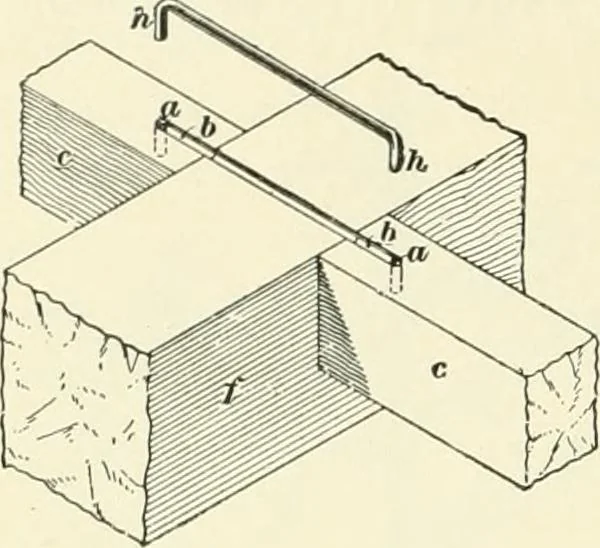

Fig. 90. These cleats serve the double purpose of tying- the o;irdersystem together longitudinally, and of forming a seat forthe ends of the floorbeams /i. 321. The floorbeams /i are 0xO (Georgia pine, theirlower sides being notched about 1 inch to bring their upperedges in line with the top of the… … Fig. 91. floorbeam a |-inch hole is bored 3 inches deep, as shown at y, into which iron dogs,shown at /, are driven; when thebeams are in place, a dog made ofa f-inch round iron bar, 22 incheslong, with 2 inches of each endbent at right angles, is driventightly into the holes in the top ofthe…
