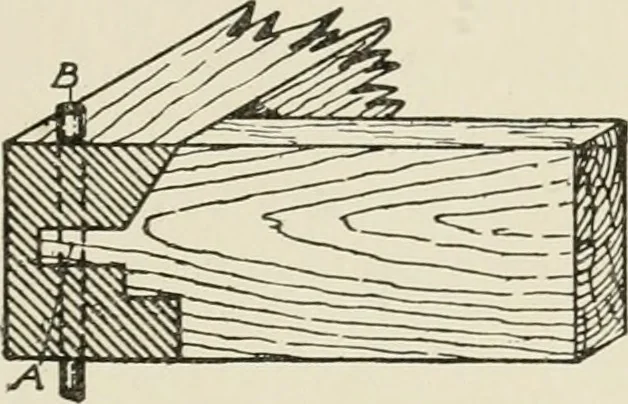

Fig. 40. Tenon-and-Tusk Joint with SpeciallyCut Tenon Piece 62 CARPENTRY 53 There are several ways of securing the tenon in place. Thesimplest is that shown in Fig. 47, where the pin B is passed throughthe tenon A and the mortised piece so as to hold the tenon securelyin place. Another scheme is to…
