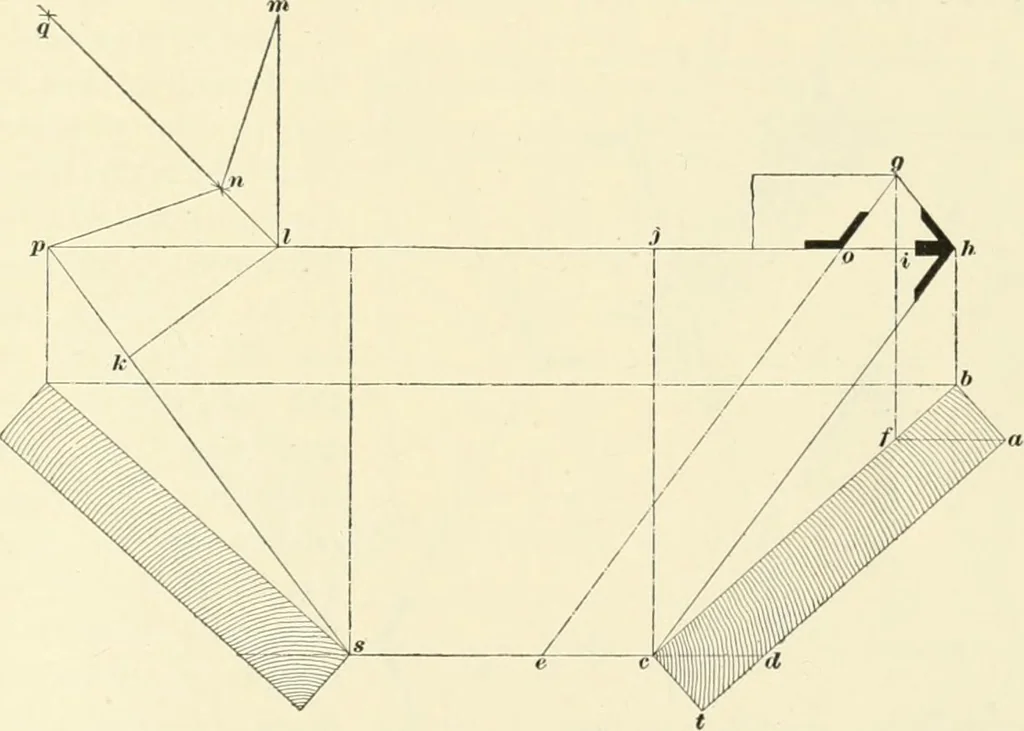

right angles to ///; make ig equal to the § 10 JOINERY. 57 thickness ba\ connect Jig\ then the angle jlig gives tliebevel required. To find the bevel for a miter joint on the square edge—asglic in Fig. 37—make cc equal to dc\ parallel to c h draweo\ connect og, then the angle jog is the miter… … Fig. 38. along the line/.f, and at right angles to it; at right anglesto//, draw a line through /; make //// equal to //; with ///and/ as centers, describe the intersecting arcs at q\ connectq /; with Ik as radiiis, and on ;// and / as centers, describeintersecting arcs at ;/; connect // to ;// and…
