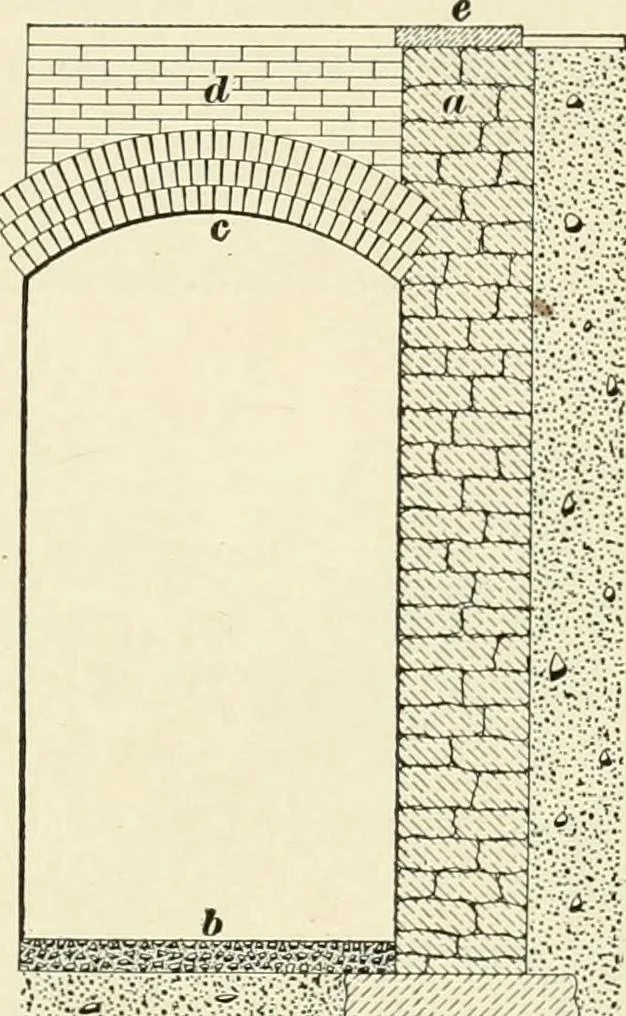

Fig. 41. Fig. 49. When an area wall is 10 feet long, bracing arches canusually be thrown from one wall to another, as shown inFig. 42. Here a shows the area wall; b, the concretebottom of the area itself; r, the bracing arch, shown in thiscase as a segmental arch made of three courses of brick;…
