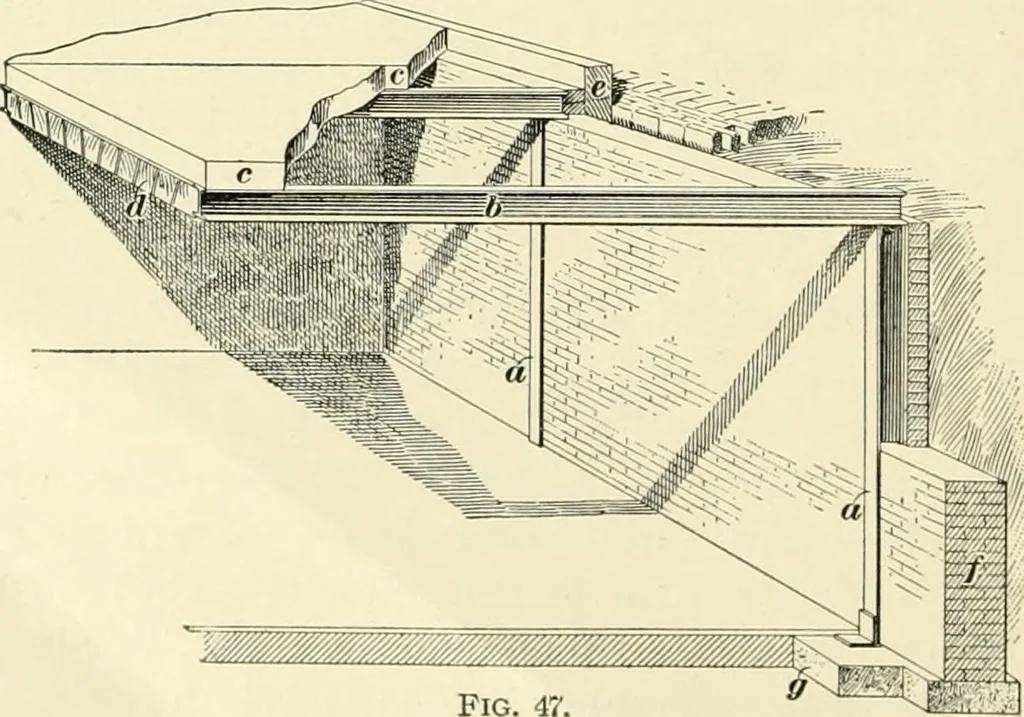

Fin. 4C. 118. When it is desired to have the vault unobstructedby partitions, each sidewalk slab may be supported by anI beam column, as shown in Fig. 47. In this method of con-struction, the iron columns a support the outer ends of the … Fig. 47. MASONRY. 63 I beams /;, which carry the stone flag- or concrete pavement,shown at c. The space between the I beams is filled bythe fireproof blocks d. The curb stone is shown at c; when
