A treatise on architecture and building construction (1899)
International Correspondence Schools · Scranton, The Colliery engineer co. · leaf 15

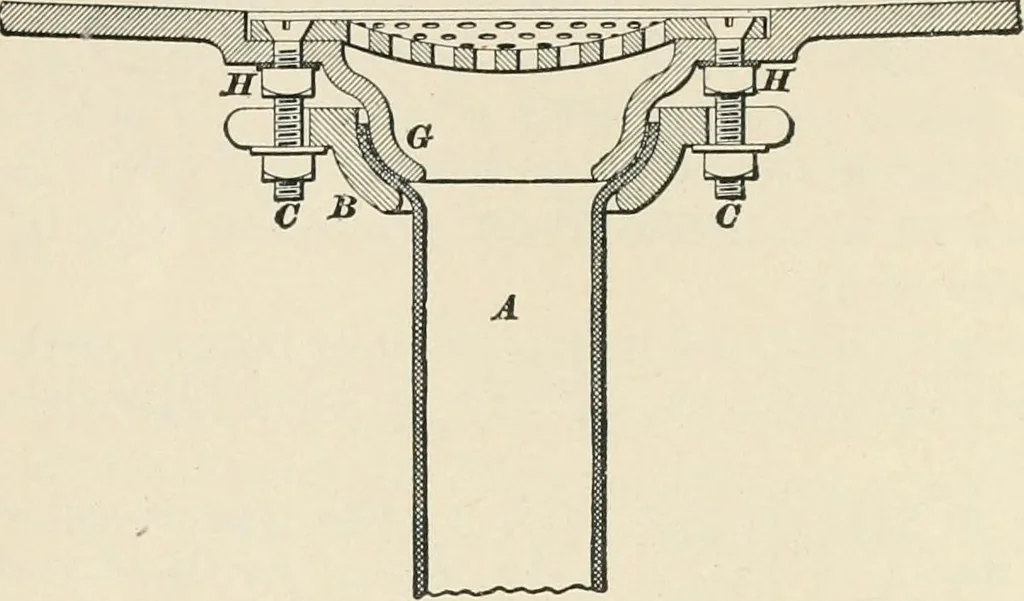

iners, and the waste PLUMBING AND GAS-FITTING. 16 pipe is attached as shown in Fig. 2. The lead waste pipe Ais flanged over the conical nozzle G of the sink, and is heldin place by the clamp ring B and the bolts C. To preventwater from leaking past the heads of the bolts and tricklingdown upon the… … Fig. a. of the place in which it is to be set. This can easily be deter-mined by reference to the catalogue of any reliable plumberssupply house. For ordinary circumstances, a sink 3G incheslong by 20 inches wide by 6 inches deep is generally employed.For general plain service galvanized cast-iron…
