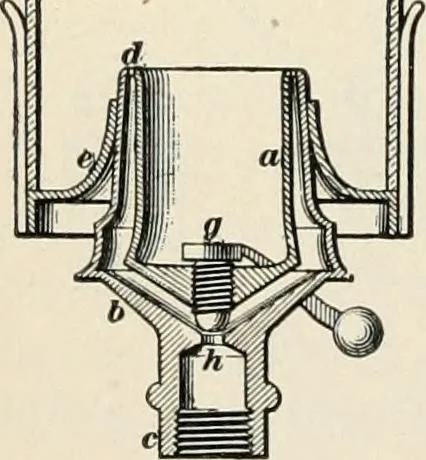

ner, the pressure should be about.2 inch of water, and the chimney / mustbe of such diameter and length that thedraft will supply the proper amount of airto completely burn the gas—no more orless. This amount will vary somewhatwith different qualities of gas. Every Argand burner should have… … Fig. &4. §16 PLUMBING AND GAS-FITTING. 145 329. The regenerative lamp, or burner, is made inmany ways, but the object in everycase is to heat the air or the gas, orboth, before the gas is burned. The simplest application of theregenerative principle is shown inFig. 85. Two or more small…
