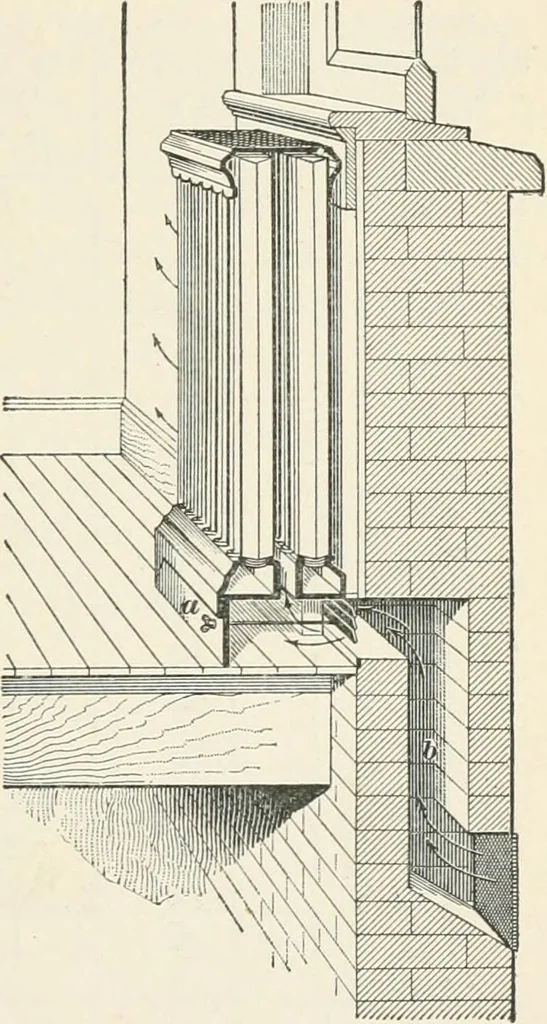

d and contract freelywithout straining. Thecourse of steam through theheater is shown by arrows. 84. The ordinary vari-eties of vertical-tube radia-tors may easily be adapted todirect-indirect heating.The mode of applying a di-rect radiator of the Nason orBundy type to that purpose is. shown in… … Fig. 35. 52 HEATING AND VENTILATION 17 Flue radiators may be applied in a similar manner by enclo-sing the base and compelling the fresh air to pass up the flues. EMISSIVE CAPACITY OF RADIATORS. 85. The following general conclusions arc deduced fromthe results of extensive experiments and tests of…
