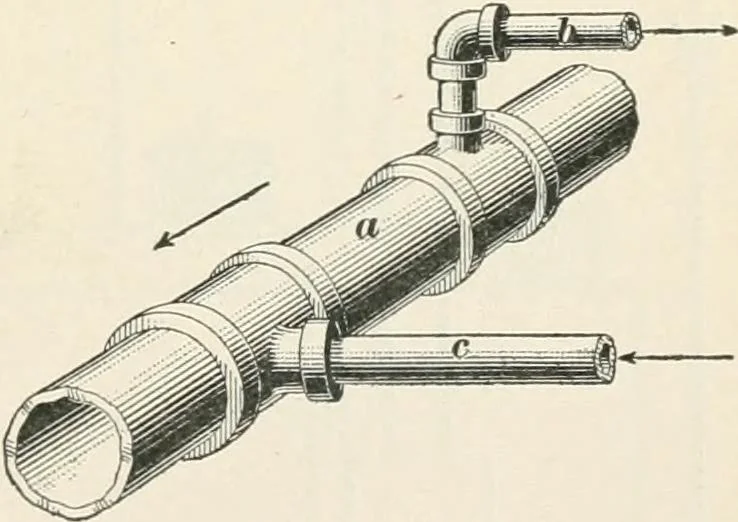

ce is substantially the same as for steam heating. Theexpansion of the pipes by heat must be provided for by usingspring pieces, expansion joints, etc. in the same manner. 197. All liorizontalbrandies from the flow mainshould be connected into thetop of the main, or at leastshould be taken off by… … 122 HEATING AND VENTILATION 17 198. In the one-pipe system the connections for aradiator are made substantially as shown in Fig. 70, b beingthe flow connection, c the return, and the main currentmoving through a in the direction of the arrow. The objecthere is chiefly to take the supply of hot…
