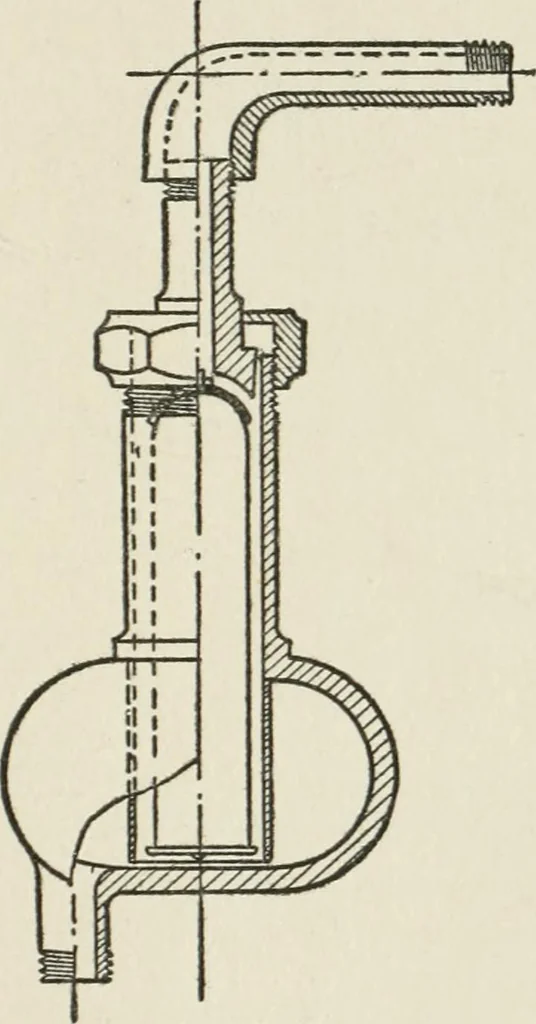

HEATING AND VENTILATION 129 pressure equal to or below that of the atmos-phere. The Trane system involves the use of a cupof mercury in the center of a device called amercury seal, as illustrated by Fig. 97. Aspecial form of automatic air-valve, ha^dng aunion drip connection, is used on the return… … Fig. 99. Eetainer Valve. of each radiator. An air-pipe connecting to thisvalve is carried to the basement, where it isjoined into a larger air-pipe called an air-main.This line follows closely the direction of thesteam main, terminating at a point near to theboiler, where it drops down and connects…
