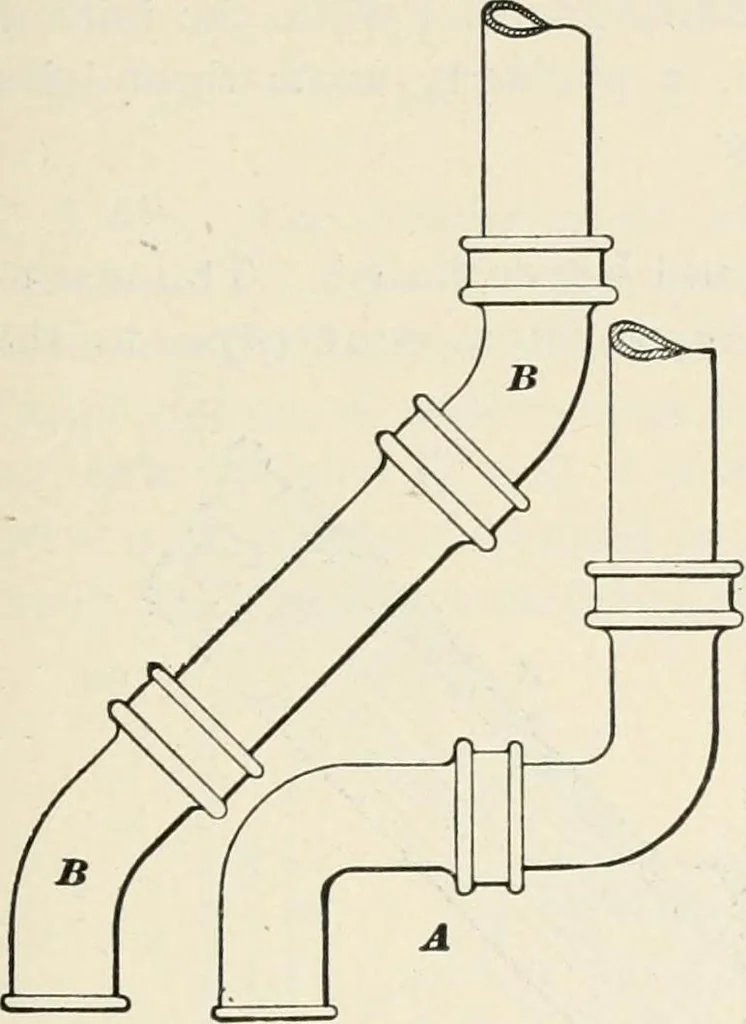

All bends andcurves should be made of large radius. Where an offsethas to be made in a soil or vent pipe, it is advisable to use IG PLUMBING AND GAS-FITTING. 73 two obtuse angle or eigflitli bends, B, B, as shown in Fig. 44. Right angle or quarter bends, as at yJ, should not be used for this…
